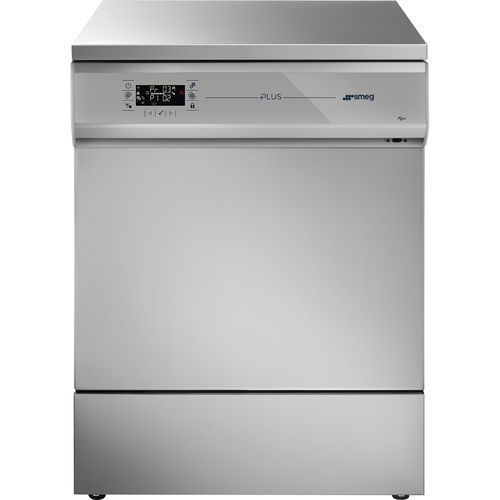

Laboratory glassware washer GW5260-PC-000
water-based detergentwaterwater jet

Laboratory glassware washer - GW5260-PC-000 - SMEG Instruments - water-based detergent / water / water jet
Laboratory glassware washer - GW5260-PC-000 - SMEG Instruments - water-based detergent / water / water jet
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory
Technology
water-based detergent, water, water jet, alkaline, air blast, steam

Description

Overview
  • Type: Glassware washer 60 cm for laboratory use
  • Working temperature: Up to 95 °C
  • Door: 1 stainless-steel drop-down door
  • Washer chamber material: AISI 316L
  • Product dimensions (WxDxH mm): 600x640x850


Highlights
  • Color LCD display: Touch-on-glass color LCD shows selected program, progress, temperature, remaining time, AO values and dosing status; ECO program for reduced water and energy consumption.
  • Data recording & connectivity: USB port for data export; LAN optional for cycle download, diagnostics and PC connectivity.
  • Premium materials: Washing chamber and internal door in AISI 316L for high corrosion resistance and long service life.


Technical Features
  • Working temperature: Up to 95 °C
  • Washing levels: Up to 2
  • Optimized forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Undercounter installation: Yes


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Monophase conversion: Optional kit (WD-EC-1)
  • Convertible to three-phase without neutral: Optional kit (WD-EC-3)
  • 60 Hz operation: Available on request


Hydraulic connection
  • Cold water connection: Yes
  • Hot water connection: Yes
  • Demineralized water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Interface
  • Electronic control: Yes
  • Alarm indicator: Yes, on display
  • Remaining duration display: Yes
  • End of cycle indicator: Yes
  • Traceability: Last 300 executed programs
  • Cycle archive and download: Archive available; download via USB (standard) or LAN (optional)


Construction
  • External material: AISI 304
  • Washing chamber material: AISI 316L
  • Chamber with rails/guides: Yes


Equipments
  • Peristaltic pumps for dosing: neutraliser, detergent, caustic soda, defoamer (standard)
  • Chemicals dosing control: Optional
  • Detergent level sensor: Optional
  • Steam condenser: Yes
  • Water softener: Yes
  • Conductivity sensor: Optional
  • Waste water separation solenoid valve: Optional
  • Acqua Stop (leak protection): Optional
  • Probe passage hole for validation: Optional
  • Specific kit for petrochemical applications: Standard


Logistic information
  • Product dimensions (WxDxH mm): 600x640x850


Optional accessories (selected)
  • CS1-1: Support and basket holding
  • CS2: Universal washing solution for large items or specific supports
  • M-CS1DUODS: Support and basket holding
  • LM80DS: Narrow-necked glassware, Nozzle number: 68
  • LM40ICS1DS: Narrow- and wide-neck glassware; supports and baskets, Nozzle number: 40
  • LB8DS / LB16DS / LB4BDS: Large bottles, beakers, Erlenmeyer (various nozzle counts)
  • LPM2010DS / LPM2020DS / KP100DS / KP200DS: Pipette, test tube and vial accessories (various nozzle configurations)


Technical specifications
  • Product family: Glassware washers
  • Model / SKU: GW5260-PC-000
  • Brand: Smeg
  • Type: Glassware washer 60 cm
  • Working temperature: Up to 95 °C
  • Chamber material: AISI 316L
  • External material: AISI 304
  • Door: 1 stainless-steel drop-down door
  • Dimensions (WxDxH mm): 600x640x850
  • Electrical: 3N AC 400V - 50Hz (convertible; optional kits available)
  • Programs: 20 standard stored, 20 modifiable
  • Traceability: Last 300 executed programs, cycle archive; USB/LAN download options
