Glassware washer for the pharmaceutical industry GW5260-SC-000

for the food industrylaboratorywater

Overview

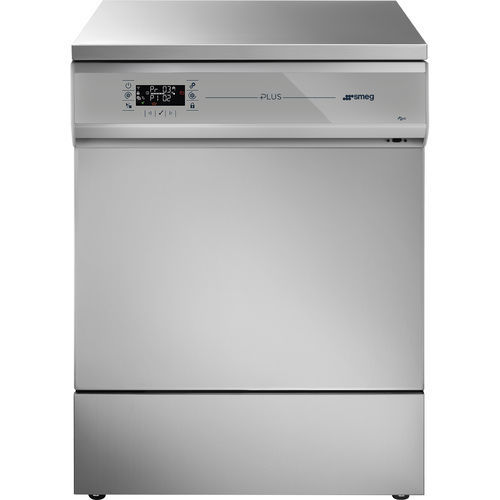

Designed in Italy by Smeg, the GW5260-SC-000 is a 60 cm glassware washer for life science, laboratory, pharmaceutical, petrochemical and agro-food applications. It is suitable for undercounter installation and available with a stainless-steel door (alternative glass-door version: GW5260-SC-00G).

Color LCD display
The color LCD touch-on-glass display shows real-time cycle parameters: selected program, progress status, temperature, remaining time, Ao values and peristaltic pump dosing. An ECO program reduces water and energy consumption compared with standard cycles.

Data recording
USB interface enables straightforward recording of laboratory data and immediate connection to a PC for diagnostics, program customization and detailed analysis.

Premium materials
The washing chamber and drop-down door are manufactured in AISI 316L stainless steel for high corrosion and mechanical resistance, ensuring long service life.

Key product information

• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Door: 1, stainless-steel drop-down door (glass door variant available)
• Washer chamber material: AISI 316L
• Product dimensions WxDxH (mm): 600x640x850
• Chamber capacity (net volume): 147 l

Technical features

• Washing levels: up to 2
• Optimized forced hot-air drying system: Yes
• HEPA filter: Optional
• Undercounter installation: Yes

Programs & traceability

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive

Interface & controls

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using optional kit (WD-EC-1)
• Convertible to three-phase without neutral: Yes, using optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Construction & equipment

• External material of the machine: AISI 304
• Chamber with rails: Yes
• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Target sectors
Life science; Laboratory; Pharmaceutical; Petrochemical industry; Agro-food.

Also available
Available versions: GW5260-SC-00G - glass door version.

Technical specifications

• Model / Series: GW5260 series
• Product type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber net volume: 147 l
• Product dimensions (WxDxH mm): 600x640x850
• Washing levels: up to 2
• Forced hot-air drying: Optimized system
• HEPA filter: Optional
• Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes
• Electronic control with display: Yes (LCD touch-on-glass)
• Traceability: Last 300 executed programs; Cycle archive available
• Data export: USB pen drive or optional LAN
• Electrical connection: 3N AC 400V - 50Hz (conversion kits available)
• Cold / Hot / Demi water connections: Yes
• Drain pump: Yes; Booster pump for demineralized water: Optional
• Peristaltic pumps: Neutraliser and detergent included; additional pumps and dosing options optional
• Steam condenser: Yes; Water softener: Yes
