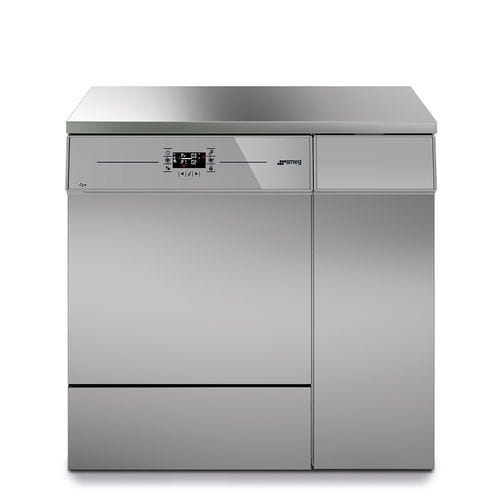

Automatic glassware washer GWF29 series

laboratorywaterair blast

Overview
Glassware washers designed by Smeg for laboratory and life-science applications. Flexible modular system (FlexiLoad) allowing the wash chamber to be configured for bottles, flasks, pipettes, vials and other glassware. Optimized usable chamber space enabling simultaneous washing of various shapes and sizes on two levels. Enhanced washing and drying performance with 50% boost in drying power for faster, residue-free results.

Highlights
Flexible interchangeable modules positioned on lower and upper levels; upper level reconfigurable at two heights; modular system for high loading flexibility; possibility to wash 1000 ml bottles on both levels simultaneously.

Technical Features (summary)

• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Upper level reconfigurable at two different heights: Yes
• Enhanced forced hot-air drying system: Yes (50% boost in drying power)
• HEPA Filter: Optional
• Door: 1 stainless-steel drop-down door
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes

Interface and Traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Construction and Capacity

• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber capacity (net volume): 152 l
• Chamber with rails: Yes
• Product dimensions WxDxH (mm): 900x605x850

Equipments and Dosing

• Powder detergent entrance: Yes
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Optional
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes
• Cabinet for detergents: Yes, for 2 canisters of 5l

Also available

• Available versions: GWF29-S0-000 (version with second dosing pump for liquid detergent); GWF29-0C-000 (version with integrated steam condenser)

Specifications / Technical data

• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Door: 1 stainless-steel drop-down door
• Washer Chamber Material: AISI 316L
• External material: AISI 304
• Chamber capacity (net volume): 152 l
• Product dimensions (WxDxH mm): 900x605x850
• Washing levels: till 2
• Upper level reconfigurable: Yes (two heights)
• Enhanced forced hot-air drying system: Yes
• HEPA filter: Optional
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes
• Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase conversion kits available)
• Cold water connection: Yes; Hot water: Optional (T4260AC)
• Demi water connection: Yes; Drain pump: Yes; Booster pump for demin. water: Optional
• Powder detergent entrance: Yes; Peristaltic pumps: dosing neutraliser (Yes), detergent/caustic/defoamer (Optional)
• Water softener: Yes; Acqua Stop: Optional
• Probe passage hole for validation: Yes
• Detergent cabinet: Yes (for 2 x 5 l canisters)
• Programs: 20 standard stored, 20 modifiable, program editing and traceability (last 300 executed programs)
