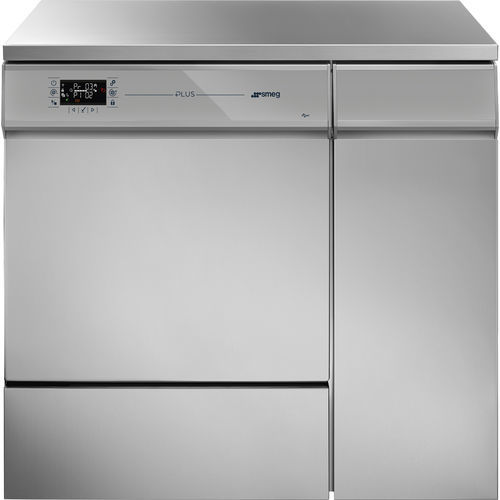

Laboratory glassware washer GW5290-SC-000

water-based detergentdrywater

Overview
The GW5290-SC-000 is a 90 cm glassware washer designed for life science and healthcare laboratory environments. It features a colour LCD touch-on-glass display for real-time cycle information, configurable programs, USB data recording and multiple options for detergent dosing and drying to ensure thorough cleaning and traceability.

Highlights

• Colour touch display: Colour LCD touch-on-glass display shows selected program, progress status, temperature, remaining time, Ao values and peristaltic pump dosing. ECO program available for reduced water and energy consumption.
• Detergent compartment: Detergent cabinet can hold up to two 5-litre canisters (optional shelf extends capacity to four 5-litre canisters).
• Data recording: USB input enables laboratory data recording and PC connection for diagnostics, cycle customization and data analysis.
• Loading flexibility: Wide choice of trolley configurations to accommodate long-necked and narrow-necked glassware, pipettes, test tubes and large glasses.
• Materials: Washing chamber and counter door made of AISI 316L stainless steel; external panels AISI 304 for corrosion resistance.
• Drying: Optimized forced hot-air drying system for effective removal of moisture residues.

Optional / Accessories

• CS1-1: Washing functions - Holding of supports and baskets
• CS2: Universal washing solution for large items or specific supports
• M-CS1DUODS: Washing functions - Holding of supports and baskets
• LM80DS: Washing functions - Narrow-necked glassware; Nozzle number: 68
• LM40ICS1DS: Washing functions - Narrow-necked glassware, Wide-neck glassware, Holding of supports and baskets; Nozzle number: 40
• LB8DS: Washing functions - Big bottles; Nozzle number: 16
• LB16DS: Washing functions - Beakers, Erlenmeyer flasks, Bottles; Nozzle number: 16
• LB4BDS: Washing functions - Erlenmeyer flasks, Big bottles; Nozzle number: 4
• LPM2010DS: Washing functions - Pipettes, Test tubes, Narrow-necked glassware; Nozzle number: 31
• LPM2020DS: Washing functions - Pipettes, Narrow-necked glassware; Nozzle number: 20+20
• KP100DS: Washing functions - Test tubes, Vials; Nozzle number: 104
• KP200DS: Washing functions - Pipettes, Vials; Nozzle number: 208

Also available

• GW5290-SC-00G - glass door version

Technical specifications

• Type: Glassware washer 90 cm
• Model code: GW5290-SC-000
• Working temperature: Up to 95 °C
• Washing levels: Up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material of the machine: AISI 304
• Chamber with rails: Yes
• Product dimensions (WxDxH mm): 900x640x850
• Undercounter installation: Yes
• Optimized forced hot-air drying system: Yes
• HEPA Filter: Optional
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
• Convertible in tri-phase w/o neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on demand
• Cold water connection: Yes
• Hot water connection: Yes
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 3
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 canisters of 5 l
