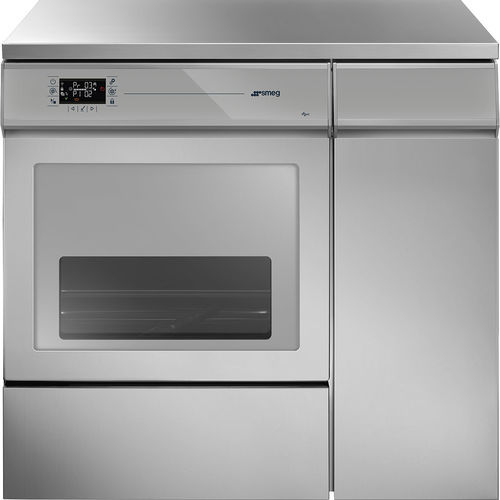

Automatic glassware washer GW4290-SC-00G

laboratorysprayair blast

Overview
The Smeg GW4290-SC-00G is a 90 cm glassware washer engineered for laboratory and life-science environments. Designed for undercounter installation, it offers program customization, an ECO cycle for reduced water and energy consumption, and a color touch display for intuitive operation.

Highlights

• Color touch display with intuitive interface
• ECO program to minimize water and energy use
• Large detergent compartment; optional shelf holds up to four 5 L canisters
• USB data export and PC connectivity for diagnostics and cycle analysis

Loading & Detergents

• Multiple trolley configurations to secure long-neck and narrow-neck glassware, pipettes, test tubes and large beakers
• Detergent cabinet available for 2 × 5 L canisters; optional shelf for up to 4 × 5 L

Interface & Data

• Electronic control with alarm indicator on display
• Remaining time and end-of-cycle indicators
• Traceability: memory of last 300 executed programs
• Cycle archive with optional download via LAN or USB

Technical Features (summary)

• Working temperature: up to 95 °C
• Washing levels: up to 2
• Forced hot-air drying: yes
• HEPA filter: optional
• Door: stainless steel with glass porthole
• Undercounter installation: yes

Hydraulic & Electrical

• Cold water connection: yes
• Hot water connection: optional (T4260AC)
• Deionized water connection: yes
• Drain pump: yes
• Booster pump for demineralized water: optional
• Electrical connection: 3N AC 400V - 50Hz (monophase and tri-phase conversion kits available)
• 60 Hz supply: available on request

Equipments & Optional Functions

• Peristaltic pumps for dosing neutraliser and detergent: included
• Additional peristaltic pumps (caustic, defoamer): optional (up to 2 extra)
• Detergent level sensor, chemical dosing, Acqua Stop: optional
• Steam condenser and water softener: included
• Probe passage hole for validation and detergent cabinet: optional/available

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: yes

Downloads & Documentation
Instruction manual and product-specific technical documentation available in PDF format.

Specifications

• Model: GW4290-SC-00G
• Brand: Smeg
• Type: Glassware washer 90 cm (undercounter)
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Drying: forced hot-air
• External material: AISI 304
• Washing chamber material: AISI 316L
• Chamber with rails: yes
• Dimensions (WxDxH mm): 900 × 600 × 850
• HEPA filter: optional
• Electrical supply: 3N AC 400V - 50Hz (conversion kits available)
• Monophase conversion kit: WD-EC4290-1 (optional)
• Tri-phase conversion kit (without neutral): WD-EC4290-3 (optional)
• Peristaltic dosing pumps: neutraliser and detergent included; up to 2 additional optional
• Detergent cabinet: for 2 × 5 L canisters; optional shelf for 4 × 5 L
• Traceability: last 300 executed programs; cycle archive and optional download via LAN/USB
