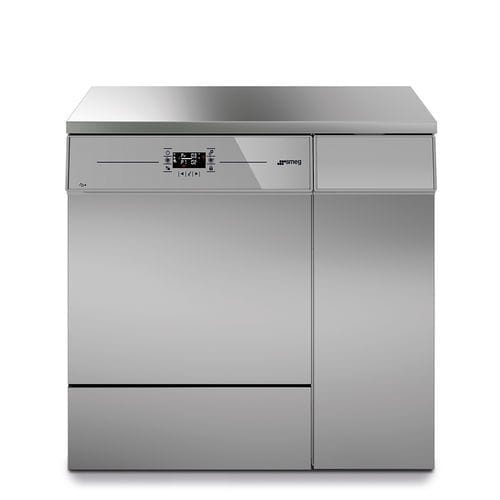

Automatic glassware washer GWF29-SC-000

laboratorywater-based detergentspray

Overview
Smeg designed in Italy, has functional characteristics of quality with a design that combines style and high technology. Flexible modules allow the wash chamber to be easily configured according to the shape, size, and type of glassware to be cleaned (bottles, flasks, pipettes, vials, etc.). This makes it possible to optimize the use of internal space, even with mixed loads. All modules are interchangeable and can be positioned either to the right or left of each trolley, both on the lower and upper levels.

Highlights

• Modularity: Flexible modules allow the wash chamber to be easily configured according to the shape, size and type of glassware (bottles, flasks, pipettes, vials, etc.). Modules interchangeable and positionable to right or left of each trolley on both levels.
• Optimized capacity: Usable chamber space optimized to allow simultaneous washing of glassware of various shapes and sizes; possible to wash 1000 ml bottles on both loading levels at the same time.
• Repositionable upper rack: Two identical levels; upper level fully reconfigurable at two different heights to accommodate various sizes without additional trolleys or accessories.
• High-performance washing and drying: Washing and drying systems designed for top performance. 50% boost in drying power; glassware ready to use in less time and without residues.

Main product data

• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Door: 1, stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber capacity (net volume): 152 l
• Chamber with rails: Yes
• Product dimensions WxDxH (mm): 900x605x850

Technical features

• Washing levels: till 2
• Upper level reconfigurable at two different heights: Yes
• Enhanced forced hot-air drying system: Yes
• HEPA Filter: Optional
• Modular system for high loading flexibility: Yes
• Undercounter installation: Yes

Programs

• Standard programs stores: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC4290-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Optimized hydraulic circuit with targeted pressure and increased flow rate: Yes
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface and traceability

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Download cycle: Optional through LAN connection / Yes with USB pen drive

Equipment

• Peristaltic pump for dosing the liquid neutraliser: Yes
• Peristaltic pump for dosing the liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam Condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Yes
• Cabinet for detergents: Yes, for 2 canisters of 5l

Also available

• Available versions: GWF29-SC-00G - glass door version

Technical specifications

• Model / Commercial denomination: GWF29-SC-000
• Brand: Smeg
• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Door: 1, stainless-steel drop-down door
• Washer Chamber Material: AISI 316L
• External material: AISI 304
• Chamber capacity (net volume): 152 l
• Washer chamber rails: Yes
• Product dimensions WxDxH (mm): 900x605x850
• Washing levels: till 2
• Upper level reconfigurable at two different heights: Yes
• Enhanced forced hot-air drying system: Yes
• HEPA Filter: Optional
• Undercounter installation: Yes
• Standard programs stores: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz (monophase/tri-phase conversion options available)
• Cold water connection: Yes; Hot water: Optional (T4260AC); Demi water: Yes; Drain pump: Yes; Booster pump for demineralized water: Optional
• Peristaltic pumps: dosing neutraliser and detergent standard; additional pumps optional
