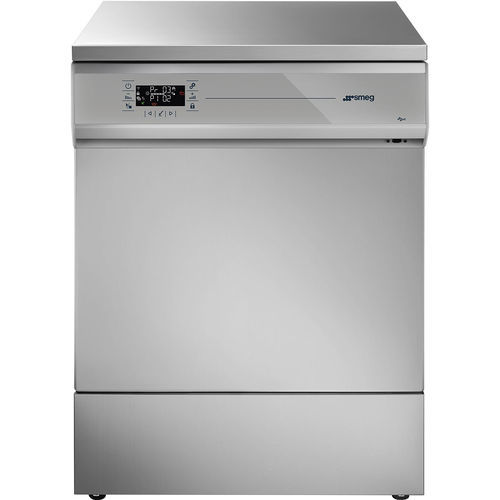

Automatic glassware washer GW1260 series

for the pharmaceutical industryfor the food industrylaboratory

Product overview Glassware washer GW1260-00-000 60 cm designed by Smeg for laboratory and life science applications. Undercounter installation possible. Available versions: GW1260-0C-000 (integrated steam condenser) and GW1260-S0-000 (second dosing pump for liquid detergent). Key materials: washer chamber AISI 316L, external housing AISI 304. Working temperature up to 95 °C.

Color touch display Intuitive color touch display for daily operation. Compact interface provides full program information and direct selection of specific washing cycles. ECO program available to reduce water and energy consumption compared with standard cycles.

Data recording USB port for laboratory data recording and export. Direct PC connection via dedicated software for diagnostics, cycle customization and traceable data analysis.

Programs 20 standard programs stored, 20 modifiable programs. Program editing supported. Traceability: records last 300 executed programs. Cycle archive available. Cycle download possible via LAN (optional) or USB pen drive.

Technical features Working temperature: up to 95 °C. Washing levels: up to 2. Door: 1 stainless-steel drop-down door. Chamber with rails: yes. Product dimensions (WxDxH mm): 600x600x850. Undercounter installation: yes.

Electrical connection Standard connection: 3N AC 400V - 50Hz. Single-phase conversion available with optional kit (WD-EC-1). Convertible to three-phase without neutral with optional kit (WD-EC-3). 60 Hz version available on request. No plug supplied.

Hydraulic connection Cold water connection: yes. Hot water connection: optional (T4260AC). Demineralized water connection: yes. Drain pump: yes. Booster pump for demineralized water: optional.

Construction & equipments External material: AISI 304. Washer chamber material: AISI 316L. Powder detergent inlet: yes. Peristaltic pump for liquid neutraliser: yes. Additional peristaltic pumps possible (up to 1 extra). Options: peristaltic pumps for caustic soda and defoamer, chemical dosing, detergent level sensor, water softener, Acqua Stop, probe passage hole for validation.

Interface Electronic control with alarm indicator on display. Remaining duration and end-of-cycle indicators provided. Traceability of last 300 programs and cycle archive available. Cycle download via LAN (optional) or USB.

Target & application sectors Instruments Solutions: Life science. Suitable sectors: Laboratory; Pharmaceutical; Agro-food; Small laboratories.

Optional accessories

• CS1-1: Washing functions - holding of supports and baskets
• CS2: Universal washing solution for large goods or specific supports
• LM40: Narrow-necked glassware washing, nozzle number: 40
• LM40ICS1: Narrow- and wide-necked glassware, holding of supports and baskets, nozzle number: 35, positions: 40
• LB16: Washing solution for narrow-neck bottles and graduated cylinders
• LB4B: Washing functions for Erlenmeyer flasks and large bottles, nozzle number: 4
• LC8M8: Washing functions for graduated cylinders, nozzle number: 16

Technical specifications

• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Product dimensions (WxDxH mm): 600x600x850
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes (optional kit WD-EC-1)
• Convertible in tri-phase w/o neutral: Yes (optional kit WD-EC-3)
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Powder detergent entrance: Yes
• Peristaltic pump for liquid neutraliser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Download cycle: Optional via LAN / USB pen drive
