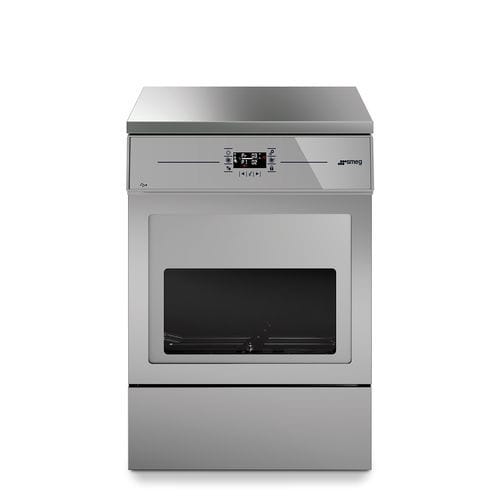

Automatic glassware washer GWF26-SC-00G

laboratoryfor the pharmaceutical industryfor the food industry

Overview
60 cm laboratory glassware washer designed for professional cleaning of laboratory glassware with the FlexiLoad modular system for maximum loading flexibility. Flexible modules allow easy configuration of the wash chamber according to shape, size and type of glassware (bottles, flasks, pipettes, vials, etc.), optimizing internal space and enabling mixed loads. All modules are interchangeable and can be placed left or right on each rack, both on lower and upper levels.

Highlights

• Modularity: interchangeable FlexiLoad modules for various glassware types
• Optimized capacity: can wash 1000 ml bottles on both levels simultaneously
• Repositionable upper basket: two identical levels, upper level reconfigurable to two heights
• High-performance wash and dry: drying system with 50% increased power to reduce time and residues

Main details
Type: 60 cm glassware washer
Operating temperature: Up to 95 °C
Door: Stainless steel with glass window
Wash chamber material: AISI 316L
Modular system for high loading flexibility: Yes
Product dimensions LxDxH (mm): 600x605x850

Technical and functional features

• Number of wash levels: up to 2
• Upper level reconfigurable to two different heights: Yes
• Enhanced forced hot-air drying system: Yes
• HEPA filter: Optional
• Undercounter installation: Yes
• Stored standard programs: 20
• Modifiable programs: 20
• Program modification capability: Yes

Electrical connection
Electrical connection: 3N AC 400V - 50Hz
Convertible to single-phase: Yes, with optional kit (WD-EC-1)
Convertible to three-phase without neutral: Yes, with optional kit (WD-EC-3)
60 Hz option: Yes, on request
Plug: No

Hydraulic connection
Optimized hydraulic circuit with targeted pressure and higher flow rate: Yes
Cold water connection: Yes
Hot water connection: Optional (T4260AC)
Demineralized water connection: Yes
Drain pump: Yes
Booster pump for demineralized water: Optional

Interface and traceability
Electronic control: Yes
Alarm indicator: Yes, on display
Remaining cycle time display: Yes
End-of-cycle indicator: Yes
Traceability: last 300 executed programs
Cycle archive: Yes
Cycle archive download: Optional via LAN / Yes via USB stick

Construction and dimensions
External casing material: AISI 304
Wash chamber material: AISI 316L
Tank capacity (net volume): 152 l
Tank with guides: Yes

Equipment and accessories

• Peristaltic pump for liquid neutralizer dosing: Yes
• Peristaltic pump for liquid detergent dosing: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for anti-foam: Optional
• Possibility to install additional peristaltic pumps: Yes, max. 1
• Chemical dosing control: Optional
• Detergent level sensor: Optional
• Vapor condenser: Yes
• Water softener: Yes
• Water Stop: Optional
• Probe pass-through port for validation: Yes

Intended use
Solutions Instruments: Life science
Life science sectors: Laboratory; Pharmaceutical; Food & beverage

Technical specifications

• Model: GWF26-SC-00G
• Type: 60 cm glassware washer
• Dimensions (LxDxH): 600x605x850 mm
• Max temperature: up to 95 °C
• Tank capacity: 152 l (net)
• Wash chamber material: AISI 316L
• External casing: AISI 304
• Wash levels: up to 2 (upper level repositionable)
• Drying: enhanced forced hot-air (HEPA optional)
• Power supply: 3N AC 400V - 50Hz (convertible via kit)
• Traceability: last 300 programs, cycle archive and optional download
