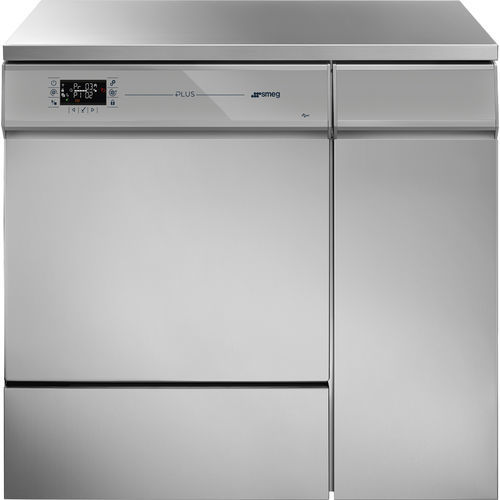

Automatic glassware washer GW5290-PC-000

laboratoryfor the pharmaceutical industryfor the food industry

Overview
The GW5290-PC-000 is a 90 cm glassware washer intended for life-science, laboratory and pharmaceutical environments. It features an AISI 316L washing chamber, undercounter installation capability and data traceability for executed cycles.

Color touch display
A color LCD touch-on-glass display shows program selection, cycle progress, temperature, remaining time, A0 values and dosing status for peristaltic pumps. An ECO program reduces water and energy consumption compared to standard cycles.

Detergent compartment
The unit includes a capacious detergent compartment that can hold up to four 5 L canisters; an optional shelf accessory is available for different configurations. A detergent cabinet for canisters is provided on request.

Data recording
USB input allows laboratory data recording and immediate connection to a PC for diagnostics, cycle customization and analysis. Cycle download is optionally available via LAN or USB pen drive.

Loading flexibility
A variety of trolleys and rack configurations accommodate long-neck and narrow-neck glassware, pipettes, test tubes and large beakers to maximise loading flexibility.

Premium materials
The washing chamber and drop-down counter door are made from AISI 316L stainless steel; the machine exterior is AISI 304 for corrosion resistance and longevity.

Complete drying
Optimised forced hot-air drying delivers rapid and effective drying while preserving final cleanliness.

Target sectors

• Life science
• Laboratory
• Pharmaceutical
• Petrochemical industry
• Agro-food
• Small laboratories

Technical characteristics / specifications

• Model: GW5290-PC-000
• Type: Glassware washer 90 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material of the machine: AISI 304
• Product dimensions (WxDxH mm): 900x640x850
• Optimized forced hot-air drying system: Yes
• HEPA filter: Optional
• Undercounter installation: Yes
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle archive: Yes
• Download cycle: Optional via LAN / Yes with USB pen drive
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using optional kit (WD-EC4290-1)
• Convertible to three-phase without neutral: Yes, using optional kit (WD-EC4290-3)
• 60 Hz possibility: Yes, on request
• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Yes
• Peristaltic pump for defoamer: Yes
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Conductivity sensor: Optional
• Waste water separation solenoid valve: Optional
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 canisters of 5 L
• Specific kit for petrochemical applications: Standard
