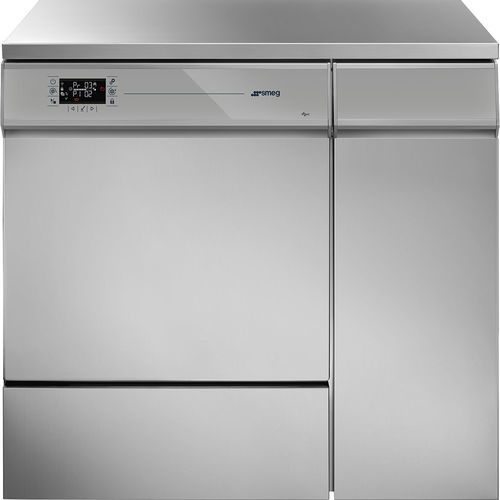

Automatic glassware washer GW4290-00-000

for the pharmaceutical industryfor the food industrylaboratory

Overview
The GW4290 glassware washer is a 90 cm laboratory washer engineered for life science, pharmaceutical, agro‑food and small analytical laboratories. It combines a 90 cm wash chamber in AISI 316L with multiple trolley configurations to process long‑neck and narrow‑neck glassware, pipettes, test tubes and large vessels. The user interface features a color touch display with specific programs and an ECO mode to reduce water and energy consumption.

Key highlights

• Color touch display for clear program selection and operation
• ECO program to reduce water and energy use
• Capacious detergent compartment for up to four 5‑liter canisters (optional shelf)
• Flexible loading via multiple trolley configurations
• USB input for laboratory data recording and PC connection for diagnostics and cycle customization
• Forced hot‑air drying system and automatic door opening for complete drying

Features and functionality

• Type: Glassware washer 90 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Forced hot‑air drying system: Yes
• HEPA filter: Optional
• Undercounter installation: Yes
• Electronic control with alarm indicator and remaining duration/end‑of‑cycle display
• Traceability: last 300 executed programs; cycle archive available
• Program memory: 20 standard programs; 20 modifiable programs; program editing supported
• Download cycle: optional via LAN; supported via USB pen drive

Electrical and hydraulic connections

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes (optional kit WD-EC4290-1)
• Convertible to tri‑phase without neutral: Yes (optional kit WD-EC4290-3)
• 60 Hz option: Yes, on demand
• Plug: Not present
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demi (deionized) water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Construction and equipment

• External material: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes
• Door: 1 stainless‑steel drop‑down door
• Powder detergent inlet: Yes
• Peristaltic pump for dosing liquid neutralizer: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Cabinet for detergents: Yes, for 2 canisters of 5 L (standard)

Available versions

• GW4290‑S0‑000 – version with second dosing pump for liquid detergent
• GW4290‑0C‑000 – version with integrated steam condenser

Technical specifications

• Model series: GW4290
• Type: Glassware washer 90 cm
• Working temperature: up to 95 °C
• Washing levels: up to 2
• Forced hot‑air drying system: Yes
• HEPA filter: Optional
• Door: 1 stainless‑steel drop‑down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Undercounter installation: Yes
• Product dimensions WxDxH (mm): 900x600x850
• Electrical connection: 3N AC 400V - 50Hz (conversion kits available)
• Cold water: Yes; Hot water: Optional (T4260AC); Demi water: Yes
• Drain pump: Yes; Booster pump for demineralized water: Optional
• Programs: 20 standard stored; 20 modifiable; program editing supported
• Traceability: last 300 executed programs; cycle archive available; download via USB (standard) or LAN (optional)
• Data recording: USB input for laboratory data recording and PC connection for diagnostics and cycle customization
• Detergent compartment capacity: up to four 5‑liter canisters (with optional shelf)
• Accessories support: wide choice of trolley configurations for various glassware types
