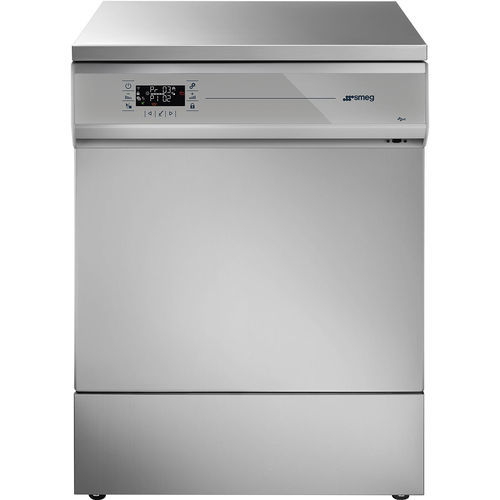

Glassware washer for the pharmaceutical industry GW1260-SC-000

for the food industrylaboratorywater

Highlights
The colour touch display provides simple, intuitive daily operation. The compact interface shows full cycle information and offers specific programs for varied laboratory needs. The ECO program reduces water and energy consumption compared with traditional cycles.

Data recording
USB input enables convenient laboratory data recording. Direct connection to PC via software supports diagnostics, cycle customization and timely data analysis.

Target

• Instruments Solutions: Life science
• Life Science sectors: Laboratory; Pharmaceutical; Agro-food; Small laboratories

Type
Glassware washer 60 cm

Technical Features

• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1, stainless-steel drop-down door
• Undercounter installation: Yes

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Electrical Connection

• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes, using ad hoc optional kit (WD-EC-1)
• Convertible in tri-phase without neutral: Yes, using ad hoc optional kit (WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional

Interface

• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Download cycle: Optional through LAN / Yes, with USB pen drive

Construction

• External material of the machine: AISI 304
• Washer chamber material: AISI 316L
• Chamber with rails: Yes

Equipments

• Peristaltic pump for dosing liquid neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 1
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional

Logistic Information
Product dimensions WxDxH (mm): 600x600x850

Characteristics / Technical specifications

• Brand: Smeg
• Model: GW1260-SC-000
• Type: Glassware washer 60 cm
• Working temperature: Up to 95 °C
• Washing levels: up to 2
• Door: 1 stainless-steel drop-down door
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber with rails: Yes
• Undercounter installation: Yes
• Product dimensions (WxDxH mm): 600x600x850
• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• Electrical connection: 3N AC 400V - 50Hz
• Monophase conversion: Yes (optional kit WD-EC-1)
• Convertible in tri-phase w/o neutral: Yes (optional kit WD-EC-3)
• 60 Hz possibility: Yes, on demand
• Plug: Not present
• Cold water connection: Yes
• Hot water connection: Optional (T4260AC)
• Demineralized water connection: Yes
• Drain pump: Yes
• Booster pump for demineralized water: Optional
• Peristaltic pumps: Neutraliser and detergent pumps included; additional/caustic/defoamer optional
• Steam condenser: Yes
• Water softener: Yes
• Acqua Stop: Optional
• Probe passage hole for validation: Optional
• Electronic control & Traceability: Yes (last 300 executed programs)
• Cycle Archive & Download: Yes (archive); download optional via LAN / available via USB pen drive
