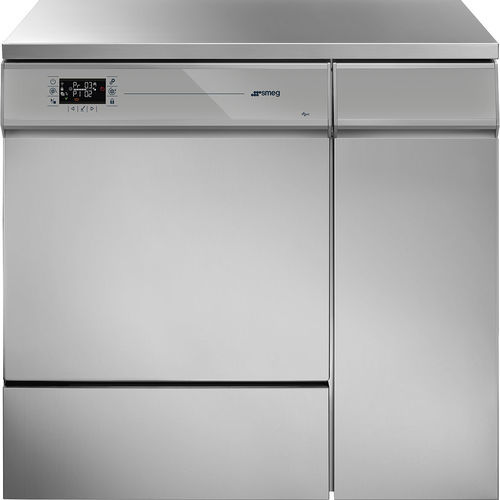

Automatic glassware washer GW4290-SC-000
for the food industrylaboratoryfor the pharmaceutical industry

Automatic glassware washer - GW4290-SC-000 - SMEG Instruments - for the food industry / laboratory / for the pharmaceutical industry
Automatic glassware washer - GW4290-SC-000 - SMEG Instruments - for the food industry / laboratory / for the pharmaceutical industry
Automatic glassware washer - GW4290-SC-000 - SMEG Instruments - for the food industry / laboratory / for the pharmaceutical industry - image - 2
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Operational mode
automatic
Applications
for the food industry, laboratory, for the pharmaceutical industry
Technology
spray, water, air blast

Description

Applications
  • Solutions Instruments: Life science
  • Life science sectors: Laboratory; Pharmaceutical; Food; Small laboratories


Type
  • Type: Glassware washer 90 cm


Technical features
  • Operating temperature: Up to 95 °C
  • Washing levels: up to 2
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Door: 1 hinged stainless steel door
  • Undercounter installation: Yes


Programs
  • Stored standard programs: 20
  • Modifiable programs: 20
  • Program editing: Yes


Electrical connection
  • Electrical connection: 3N AC 400V - 50Hz
  • Convertible to single-phase: Yes, via optional kit (WD-EC4290-1)
  • Convertible to three-phase without neutral: Yes, via optional kit (WD-EC4290-3)
  • 60 Hz availability: Yes, on request
  • Plug: No


Plumbing connection
  • Cold water connection: Yes
  • Hot water connection: Optional (T4260AC)
  • Deionized water connection: Yes
  • Drain pump: Yes
  • Booster pump for deionized water: Optional


Also available
  • Available versions: GW4290-XX-00G - version with glass door


Interface
  • Electronic control: Yes
  • Alarm indicator: Yes, on display
  • Remaining time display: Yes
  • End-of-cycle indicator: Yes
  • Traceability: Last 300 executed programs
  • Cycle archiving: Yes
  • Archive download: Optional via LAN / Yes via USB stick


Construction
  • External casing material: AISI 304
  • Wash chamber material: AISI 316L
  • Tub with guides: Yes


Equipment
  • Peristaltic pump for neutralizing liquid dosing: Yes
  • Peristaltic pump for liquid detergent dosing: Yes
  • Peristaltic pump for caustic soda dosing: Optional
  • Peristaltic pump for antifoam: Optional
  • Possibility to install additional peristaltic pumps: Yes, max. 2
  • Chemical dosing control: Optional
  • Detergent level sensor: Optional
  • Vapour condenser: Yes
  • Water softener: Yes
  • Water Stop: Optional
  • Probe pass-through for validation: Optional
  • Detergent cabinet: Yes, for 2 x 5 L cans


Logistics information
  • Product dimensions LxDxH (mm): 900x600x850


Options / Accessories (selection)
  • CS1-1: Washing functions: positioning of supports and baskets
  • CS2: Universal washing solution for large materials or specific supports
  • M-CS1DUODS: Washing functions: positioning of supports and baskets
  • LM80DS: Washing functions: narrow-neck glassware, Nozzle count: 68
  • LM40ICS1DS: Washing functions: narrow & wide-neck glassware, positioning of supports and baskets, Nozzle count: 40
  • LB8DS: Washing functions: carboys, Nozzle count: 16
  • LB16DS: Washing functions: beakers, flasks, bottles, Nozzle count: 16
  • LB4BDS: Washing functions: flasks, carboys, Nozzle count: 4
  • LPM2010DS: Washing functions: pipettes, tubes, narrow-neck glassware, Nozzle count: 31
  • LPM2020DS: Washing functions: pipettes, narrow-neck glassware, Nozzle count: 20+20
  • KP100DS: Washing functions: tubes, vials, Nozzle count: 104
  • KP200DS: Washing functions: pipettes, vials, Nozzle count: 208


Characteristics / Technical specifications
  • Model: GW4290-SC-000
  • Type: Glassware washer 90 cm
  • Operating temperature: Up to 95 °C
  • Washing levels: up to 2
  • Drying system: forced hot air
  • HEPA filter: Optional
  • Door: 1 hinged stainless steel door
  • Undercounter installation: Yes
  • Stored programs: 20 standard + 20 modifiable
  • Electronic control: Yes
  • Traceability: last 300 programs
  • Cycle archiving and download: yes/optional (LAN/USB)
  • External material: AISI 304
  • Wash chamber material: AISI 316L
  • Tub with guides: Yes
  • Dosing pumps: neutralizer and detergent included; others optional
  • Water connections: cold Yes; hot optional; deionized Yes
  • Drain pump: Yes
  • Electrical convertibility: single/three-phase via optional kits
  • Standard electrical connection: 3N AC 400V - 50Hz
  • Dimensions (LxDxH mm): 900x600x850
