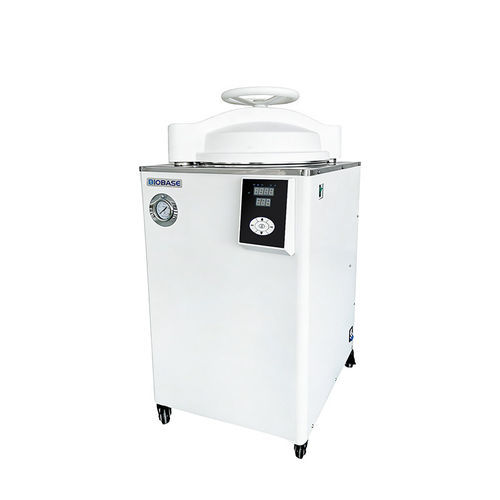

Sterilization service sterilizer BKQ-B50J

CSSDfor central sterilization supply unitssteam

Product Overview
The Vertical Autoclave is a fully automatic high-pressure steam sterilizer with built-in heating, requiring no external steam source. An SCM controller manages the entire sterilization cycle — heating, sterilizing, and exhausting — without manual intervention. It features a self-expanding silicone sealing ring for superior sealing performance and long service life. An independent maintenance window allows convenient servicing, while an optional printer records the complete sterilization process.

Brand
BIOBASE

Models
BKQ-B50J, BKQ-B75J, BKQ-B100J, BKQ-B120J

Features

• Independent maintenance window for convenient servicing
• Built-in heating mode; no external steam source required
• Diverse programs: unwrapped, packing, rubber, dressing and customizable programs
• Self-expanding silicone sealing ring with excellent sealing performance and long service life
• Single-chip microcomputer (SCM) automatically controls heating, sterilization and exhaust with no manual intervention
• Optional printer for recording the entire sterilization cycle

Technical Parameters
Model: BKQ-B50J / BKQ-B75J / BKQ-B100J / BKQ-B120J
Capacity: 50L / 75L / 100L / 120L
Designed Pressure: 0.28 MPa
Working Pressure: 0.23 MPa
Designed Temperature: 150℃
Working Temperature: 105–136℃
Temperature Precision: ±0.1℃
Chamber Material: 304 stainless steel
Chamber Size: Φ372×515 mm / Φ372×700 mm / Φ372×930 mm / Φ372×1110 mm
Basket: φ350×355 mm, 1pc / φ350×255 mm, 2pcs / φ350×355 mm, 2pcs / φ350×255 mm, 2pcs; φ350×355 mm, 1pc
Noise: ≤65 dB
Altitude: ≤2700 m
Standard Accessory: Basket
Optional Accessories: Printer, stainless steel appearance
Power Consumption: 3.5 kW / 3.8 kW
Power Supply: AC220V, 50/60Hz (standard); AC110V, 50/60Hz (optional); Wiring method: air switch
External Size (W*D*H): 525×590×950 mm / 525×590×1085 mm / 525×590×1320 mm / 525×590×1485 mm
Net Weight: 64 kg / 66 kg / 74 kg / 88 kg
Package Size (W*D*H): 750×745×1100 mm / 750×745×1240 mm / 750×745×1450 mm / 750×745×1500 mm
Gross Weight: 104 kg / 114 kg / 127 kg / 142 kg

Specifications

• Models: BKQ-B50J, BKQ-B75J, BKQ-B100J, BKQ-B120J
• Capacities: 50 L, 75 L, 100 L, 120 L
• Working temperature range: 105–136℃ (precision ±0.1℃)
• Chamber material: 304 stainless steel
• Working pressure: 0.23 MPa (design 0.28 MPa)
• Noise level: ≤65 dB; suitable for altitude up to 2700 m
• Power supply: AC220V 50/60Hz standard; AC110V optional
• Optional printer available; basket supplied as standard
