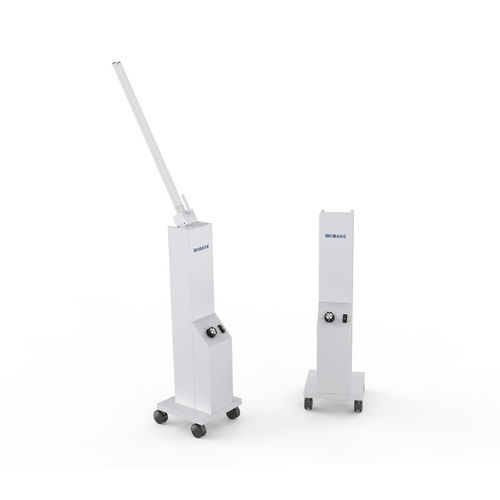

Food disinfection system ZY-II-ZW65D17W

for laboratoryUVUVC

Product overview
Suitable for healthcare facilities, households, nurseries, food production, animal husbandry and poultry farms. Also applicable to bacteriological research units, industrial bacterial research and photochemical reactions to address limitations of traditional disinfection methods.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: ZY-II-ZW65D17W | ZY-II-ZW120D17W | OLB-UDT1

Features

• Chassis with 360° universal wheels for full-area mobility and positioning.
• UV disinfection lamp adjustable freely from 0–180° to target surfaces without fixed restrictions.
• Safety quartz glass lamps with high UV transmittance, strong irradiance and extended service life.
• Optional wireless remote control for delayed start and one‑button sterilization operations.
• Adjustable timer up to 120 minutes; sterilization time can be set according to the volume/area of the space.
• Fully enclosed UV lamp holder to prevent detachment; lamp can be retracted for storage and protection (OLB-UDT1 feature).

Technical parameters
Model: ZY-II-ZW65D17W | ZY-II-ZW120D17W | OLB-UDT1
Applicable space: ≥30 m3
UV lamp life: ≤8000 h (ZY-II models); ≤5000 h (OLB-UDT1)
UV wavelength: 253.7 nm
Lamp tube length: 530 mm (ZY-II models); 894 mm × 2 (OLB-UDT1)
Adjustable lamp angle: 0–180°
Illumination: ≥200 μW/cm2 (general); single tube ≥107 μW/cm2; two tubes ≥214 μW/cm2 (depend on model/configuration)
Timer: 20, 40, 60, 80, 100, 120 min presets (ZY-II models); 0–120 min adjustable (OLB-UDT1)
Remote control (optional): range varies by voltage and model (examples: ≤30 m at 220V)
Lamp power: 65 W (ZY-II-ZW65D17W); 120 W (ZY-II-ZW120D17W); 30 W × 2 (OLB-UDT1)
Power supply: AC220V 50/60Hz (standard); AC110V optional
External size (W*D*H): 200×200×674 mm | 251×251×872 mm | 280×340×1080 mm
Net weight: 2.55 kg | 3.22 kg | 6 kg
Package size (W*D*H): 221×221×695 mm | 273×273×895 mm | 220×310×1060 mm
Gross weight: 3.5 kg | 5.1 kg | 7 kg

Specifications

• Effective UV-C wavelength: 253.7 nm
• Applicable room volume: ≥30 m3
• Lamp life: up to 8000 h (ZY-II) / up to 5000 h (OLB-UDT1)
• Adjustable lamp angle: 0–180° for targeted irradiation
• Timer control: preset and adjustable modes up to 120 minutes
• Optional remote control/teleswitch with model-dependent range and functions
• Power options and dimensions vary per model (see Technical parameters)
