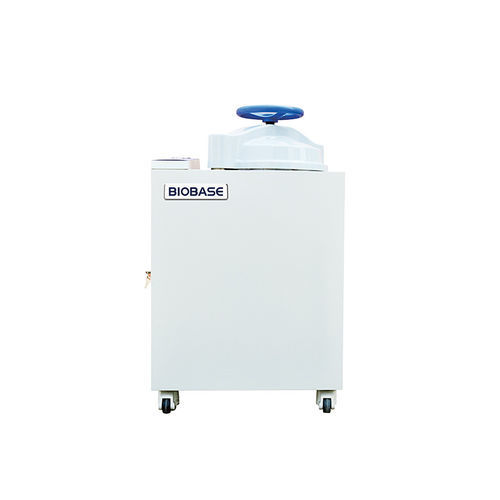

Laboratory sterilizer BKQ-B series

for sterilization servicesCSSDfor central sterilization supply units

Applications:
Biosafety autoclave is suitable for the sterilization of materials, instruments, utensils, culture media and wastes for the purpose of biosafety, in order to prevent the spread of pathogenic factors through aerosols to people, animals and plants or the environment pollution.

Features:

• True color touch control panel with clear display and easy operation.
• Waste water collection and waste gas filtration system to ensure sterility of discharged wastewater and waste gas.
• Compact footprint with large cavity volume.
• Footmaster casters for easy mobility.
• Quick service window allowing electrical equipment service without removing the cover.
• Built-in independent steam generator.
• Self-expanding silicone sealing ring made of medical transparent silicone molding for good sealing and long service life.
• Single chip control for automatic water injection, heating, sterilization, exhaust, collection and filtration; no manual operation required.
• Built-in printer for real-time sterilization data printing.
• Deionized water connection for supplying the steam generator.
• Equipped with liquid program, medium program and solid program.
• Emergency stop button.

Technical Parameters:
Model: BKQ-B50BL | BKQ-B75BL | BKQ-B100BL | BKQ-B120BL
Capacity: 50L | 75L | 100L | 120L
Designed Pressure: 0.28MPa
Working Pressure: 0.23MPa
Designed Temp.: 150℃
Working Temp.: 134℃
Temp. Precision: 0.1℃
Chamber Material: S30408
Chamber Size: φ386*515mm | φ386*695mm | φ386*875mm | φ386*1055mm
Basket: φ365*360mm, 1pc | φ365*265mm, 2pcs | φ365*360mm, 2pcs | φ365*360mm, 1pc and φ365*265mm, 2pcs
Noise: ≤65dB
Altitude: ≤2700m (please make a note when placing an order between 1000~2700 meters)
Standard Accessories: Printer, basket
Consumption: 4KW
Power Supply: AC220V, 50/60Hz
External Size (W*D*H): 700*610*1070mm | 700*610*1070mm | 700*610*1250mm | 700*610*1430mm
Net Weight: 118kg | 122kg | 130kg | 158kg
Packing Size (W*D*H): 760*670*1255mm | 760*670*1255mm | 760*670*1435mm | 760*670*1615mm
Gross Weight: 134kg | 138kg | 148kg | 176kg

Caractéristiques / Spécifications techniques:

• Series: BKQ-B series (models BKQ-B50BL, BKQ-B75BL, BKQ-B100BL, BKQ-B120BL).
• Capacities available: 50L, 75L, 100L, 120L.
• Working temperature: 134℃ with 0.1℃ precision.
• Working pressure: 0.23MPa (designed pressure 0.28MPa).
• Chamber material: S30408 stainless steel.
• Power supply: AC220V, 50/60Hz; consumption 4KW.
• Standard accessories include printer and basket.
• External dimensions and weights vary by model (see technical parameter lines for each model).
