Medical sterilizer BKQ-Z30I

laboratoryfor sterilization servicesmedical waste

Product Overview

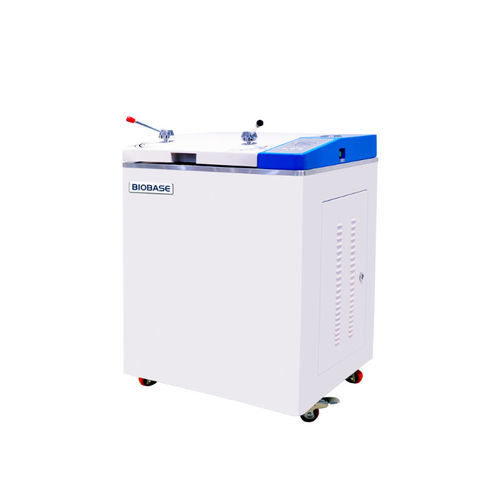

The BKQ-Z30I vertical autoclave by BIOBASE is designed for steam sterilization of instruments, laboratory equipment and medical waste. It uses gravity displacement and positive-pressure pulse exhaust to remove cold air and ensure effective sterilization; internal steam generation eliminates the need for an external steam source.

Product Details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BKQ-Z30I, BKQ-Z50I, BKQ-Z75I, BKQ-Z100I

Features

• Flip-up quick-open door for fast, ergonomical access.
• Universal casters on base for easy movement and positioning.
• Quick maintenance window; electrical components accessible without removing cover.
• Internal steam generation—no external steam source required.
• Multiple preset programs: exposed instruments, packaged instruments, rubber, dressings, liquids; customizable liquid and solid cycles.
• Self-expanding medical-grade silicone sealing ring for reliable sealing and long service life.
• Real-time chamber temperature detection and display with 0.1℃ accuracy.
• LED digital display for temperature, time and alarm codes; status indicator light.
• Single-chip microcomputer control for automated heating, sterilization and exhaust.
• Manual water refill to reservoir; cycle completion indicated by buzzer; optional printer for process records.

Technical Parameters
Model | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I
Capacity | 30L | 50L | 75L | 100L
Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa
Working Pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa
Designed Temp. | 150℃ | 150℃ | 150℃ | 150℃
Working Temp. | 105–136℃ | 105–136℃ | 105–136℃ | 105–136℃
Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃
Chamber Material | S30408 | S30408 | S30408 | S30408
Chamber Size | φ385×412mm | φ385×515mm | φ385×715mm | φ385×875mm
Basket / Mesh Bottom Basket / Bucket | φ365×265mm, 1pc | φ365×360mm, 1pc | φ365×265mm, 2pcs | φ365×360mm, 2pcs
Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB
Altitude | ≤2700m | ≤2700m | ≤2700m | ≤2700m
Standard Accessory | Basket | Basket | Basket | Basket
Optional Accessories | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket | Printer, mesh bottom basket, bucket
Consumption | 4kW | 4kW | 4kW | 4kW
Power Supply | AC220V, 50/60Hz (standard); AC110V (optional)
External Size (W×D×H) | 645×610×710mm | 645×610×810mm | 645×610×945mm | 645×610×1150mm
Net Weight | 86kg | 91kg | 98kg | 112kg
Packing Size (W×D×H) | 750×745×950mm | 750×745×1100mm | 750×745×1240mm | 750×745×1450mm
Gross Weight | 102kg | 105kg | 116kg | 124kg

Specifications

• Intended use: steam sterilization of instruments, laboratory equipment and medical waste.
• Chamber material S30408 stainless steel; multiple capacity options (30–100L).
• Operational temperature range 105–136℃, display precision 0.1℃.
• Microcomputer control with multiple preset and customizable cycles; optional printer for trace records.
• Mobility via universal casters and ergonomic door for efficient workflow in clinical and laboratory environments.
