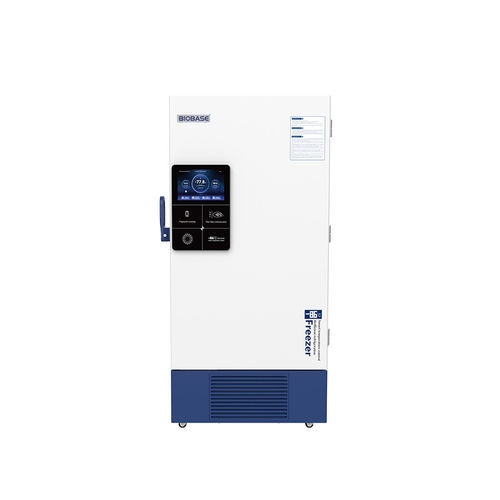

Biobank freezer BDF-86V418BD

for clinical laboratoriesfor sample storagemedical

Introduction
The -86°C ultra-low temperature freezer is engineered for long-term storage of highly temperature-sensitive biological and clinical samples. It is suitable for biobanks, pharmaceutical research, clinical laboratories and medical storage where stable subzero conditions are required.

Product information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: BDF-86V418BD | BDF-86V608BD

Features

• Exterior: spray-coated cold-rolled steel plates; interior: SUS304 stainless steel for corrosion resistance and cleanability.
• 10.1-inch full-touch Android screen with temperature display resolution 0.1°C for monitoring and operator input.
• Dual independent inverter cooling systems provide redundancy; if one system fails the other maintains operation. A single system can sustain stable temperatures below -80°C for extended periods.
• Five-layer door seal design improves temperature uniformity and reduces thermal leakage.
• Three-level door security (handle lock, padlock, electromagnetic lock) plus biometric and card access options: fingerprint, NFC and password.
• IoT-enabled remote monitoring and alarm integration for continuous supervision and audit trails.
• Integrated sample library management for inventory, outbound status, quantity and sample type tracking.

Technical parameters
Model: BDF-86V418BD | BDF-86V608BD
Capacity: 418L | 608L
Ambient temp.: 10~32°C
Temperature range: -40 ~ -86°C
Temperature accuracy: 0.1°C
Temperature uniformity: ≤5°C
Temperature stability: ≤6°C
Control system: Electronic temperature control
Display: 10.1-inch full-touch Android screen
Sensor type: PT100
Alarm: High/low temperature, power failure (72 h), door open, internal sensor fault, condenser sensor fault, ambient sensor fault, condenser clogging, high ambient temp., power board fault, power overpressure, low battery, battery disconnection, reverse battery connection
Refrigeration type: Direct-cooling
Refrigerant: R600a/R1150/R14, 252g | R600a/R1150/R14, 255g
Compressor: International brand inverter compressor ×2 (dual)
Defrost method: Manual
Condenser & evaporator: Condenser finned copper tube; evaporator internal coil copper tube
Shelves: 3 / stainless steel
Noise: ≤52 dB(A) | ≤60 dB(A)
Outer door: 1 / Cyclopentane integral foaming
Inner doors: 4 / Cyclopentane integral foaming
Power consumption: 650W | 740W
Power supply: Standard 220V, 50Hz; optional 220V 60Hz; 110V 60Hz
Caster: Universal casters ×4 + leveling feet ×2
Standard accessory: RS485, USB port, test port ×2 (φ30mm), remote alarm
Optional accessory: Barcode scanner, temperature recorder, liquid nitrogen backup system
Inner size (W*D*H): 600*612*1150 mm | 620*755*1280 mm
External size (W*D*H): 980*988*1940 mm | 1000*1147*1996 mm
Package size (W*D*H): 1130*1170*2150 mm | 1150*1280*2210 mm
Net weight: 270 kg | 308 kg
Gross weight: 350 kg | 380 kg

Characteristics / specifications

• Intended use: Long-term preservation of temperature-sensitive biological samples.
• Redundancy: Dual independent refrigeration systems for high availability in clinical/biobank environments.
• User interface: 10.1" Android full-touch display with 0.1°C readout; PT100 sensor.
• Security: Multi-level physical and biometric access controls plus audit-capable remote monitoring.
• Connectivity: RS485/USB, remote alarm, IoT platform support for centralized monitoring.
• Materials: Exterior spray-coated cold-rolled steel; interior SUS304 stainless steel for hygienic surfaces.
• Accessories: Standard test ports and remote alarm; optional barcode, data logger, LN2 backup.
• Available models: BDF-86V418BD (418L) and BDF-86V608BD (608L).
