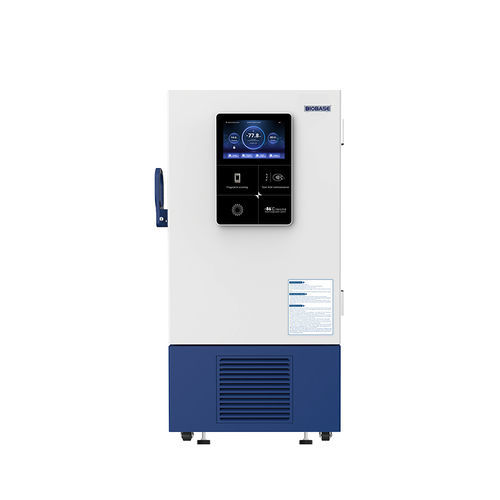

Biobank freezer BDF-86V168BMfor clinical laboratoriesfor sample storagefor biopharmaceutical applications
Add to favorites
Compare this product
Characteristics
- Applications
- for clinical laboratories, for sample storage, for biobanks, for biopharmaceutical applications
- Configuration
- cabinet, upright, on casters
- Number of doors
- 1-door
- Cooling system
- with direct cooling
- Defrost mode
- manual defrost
- Power source
- electric
- Other characteristics
- stainless steel, ultra-low-temperature
- Capacity
Max.: 348 l
(91.93 gal)Min.: 168 l
(44.38 gal)- Temperature range
Max.: -40 °C
(-40 °F)Min.: -86 °C
(-122.8 °F)- Width
Max.: 86.9 cm
(34.2 in)Min.: 84.4 cm
(33.2 in)- Depth
Max.: 98.9 cm
(38.9 in)Min.: 80.7 cm
(31.8 in)- Height
Max.: 192.4 cm
(75.7 in)Min.: 159.4 cm
(62.8 in)- 24-hour power consumption
Max.: 480 W
(1,637.83 BTU/h)Min.: 400 W
(1,364.86 BTU/h)- Number of decibels
Max.: 53 dB
Min.: 50 dB
- Weight
Max.: 232 kg
(511.5 lb)Min.: 168 kg
(370.4 lb)
Description
Introduction
The -86℃ freezer is engineered for long-term storage of highly temperature-sensitive samples. It preserves sample integrity at ultra-low temperatures and is suited for biobanks, pharmaceutical R&D, clinical laboratories and food safety applications.
Product information
Brand: BIOBASE
Origin: CHINA
Lead time: Within 7 days
Supply capacity: Direct from factory
Model: BDF-86V168BM / BDF-86V348BM
Features
Technical parameters
Model: BDF-86V168BM / BDF-86V348BM
Capacity: 168L / 348L
Ambient temp.: 10~32℃
Temperature range: -40 ~ -86℃
Display accuracy: 0.1℃
Temperature uniformity: ≤5℃
Temperature stability: ≤6℃
Control system: Electronic temperature control
Sensor: PT100
Alarm: High/low temp; power failure (72 h); door open; internal sensor fault; condenser sensor fault; ambient sensor fault; condenser clogging; high ambient temp; power board fault; power overpressure; low battery; battery disconnection; reverse battery connection
Refrigeration: Direct-cooling with inverter compressor
Refrigerant: R600a/R1150/R14 — 175g (168L) / 285g (348L)
Compressor: International brand inverter compressor
Defrost: Manual
Condenser & evaporator: Microchannel condenser (or finned copper-tube for other model); internal coil evaporator (copper tube)
Shelves: 2 stainless steel (168L) / 3 stainless steel (348L)
Noise: 53 dB(A) / 50 dB(A)
Insulation: Cyclopentane integral foaming (outer & inner doors, multi-layer design)
Power consumption: 400W / 480W
Power supply: Standard 220V 50Hz; optional 220V 60Hz / 110V 60Hz
Casters & feet: Universal casters ×4 + leveling feet ×2
Standard accessory: RS485, USB, test ports ×2 (φ30mm), remote alarm
Optional: Barcode scanner, temperature recorder, liquid nitrogen backup
Inner size (W*D*H): 465*455*820mm / 490*612*1150mm
External size (W*D*H): 844*807*1594mm / 869*989*1924mm
Package size (W*D*H): 1000*970*1790mm / 1020*1180*2130mm
Net weight: 168kg / 232kg
Gross weight: 221kg / 300kg
Specifications
The -86℃ freezer is engineered for long-term storage of highly temperature-sensitive samples. It preserves sample integrity at ultra-low temperatures and is suited for biobanks, pharmaceutical R&D, clinical laboratories and food safety applications.
Product information
Brand: BIOBASE
Origin: CHINA
Lead time: Within 7 days
Supply capacity: Direct from factory
Model: BDF-86V168BM / BDF-86V348BM
Features
- Exterior: spray-coated cold-rolled steel plates; Interior: SUS304 stainless steel.
- 10.1-inch full-touch Android screen with 0.1℃ display resolution.
- Three-lock security: door-handle lock, padlock provision and electromagnetic lock.
- Five-layer door seal for improved temperature uniformity and reduced thermal ingress.
- Standard access methods: fingerprint, NFC and password.
- IoT remote monitoring via computer platform; remote alarm support.
- Integrated sample library system for inventory, outbound status, quantity and type management.
Technical parameters
Model: BDF-86V168BM / BDF-86V348BM
Capacity: 168L / 348L
Ambient temp.: 10~32℃
Temperature range: -40 ~ -86℃
Display accuracy: 0.1℃
Temperature uniformity: ≤5℃
Temperature stability: ≤6℃
Control system: Electronic temperature control
Sensor: PT100
Alarm: High/low temp; power failure (72 h); door open; internal sensor fault; condenser sensor fault; ambient sensor fault; condenser clogging; high ambient temp; power board fault; power overpressure; low battery; battery disconnection; reverse battery connection
Refrigeration: Direct-cooling with inverter compressor
Refrigerant: R600a/R1150/R14 — 175g (168L) / 285g (348L)
Compressor: International brand inverter compressor
Defrost: Manual
Condenser & evaporator: Microchannel condenser (or finned copper-tube for other model); internal coil evaporator (copper tube)
Shelves: 2 stainless steel (168L) / 3 stainless steel (348L)
Noise: 53 dB(A) / 50 dB(A)
Insulation: Cyclopentane integral foaming (outer & inner doors, multi-layer design)
Power consumption: 400W / 480W
Power supply: Standard 220V 50Hz; optional 220V 60Hz / 110V 60Hz
Casters & feet: Universal casters ×4 + leveling feet ×2
Standard accessory: RS485, USB, test ports ×2 (φ30mm), remote alarm
Optional: Barcode scanner, temperature recorder, liquid nitrogen backup
Inner size (W*D*H): 465*455*820mm / 490*612*1150mm
External size (W*D*H): 844*807*1594mm / 869*989*1924mm
Package size (W*D*H): 1000*970*1790mm / 1020*1180*2130mm
Net weight: 168kg / 232kg
Gross weight: 221kg / 300kg
Specifications
- Models: BDF-86V168BM; BDF-86V348BM
- Operating range: -40℃ to -86℃
- Control precision: 0.1℃ (PT100 sensor)
- Direct-cooling with inverter compressor for efficient ultra-low temperature performance
- Comprehensive alarms and triple-lock security design
- 10.1" touch interface with fingerprint/NFC/password access control
- Remote monitoring via RS485/USB and IoT platform; optional LN2 backup
