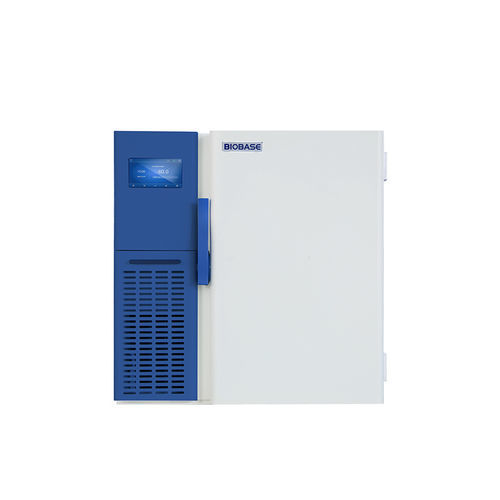

Laboratory freezer BDF-86V100for vaccinesfor healthcare facilitiesundercounter
Add to favorites
Compare this product
Characteristics
- Applications
- for laboratory, for vaccines, for healthcare facilities
- Configuration
- undercounter
- Number of doors
- 1-door, 2 doors
- Cooling system
- with direct cooling
- Defrost mode
- manual defrost
- Power source
- electric
- Other characteristics
- ultra-low-temperature, galvanized steel
- Capacity
90 l
(23.78 gal)- Temperature range
Max.: -40 °C
(-40 °F)Min.: -86 °C
(-122.8 °F)- Width
79.5 cm
(31.3 in)- Depth
68 cm
(26.8 in)- Height
81.5 cm
(32.1 in)- 24-hour power consumption
0.46 kW
(0.63 hp)- Weight
92 kg
(202.8 lb)
Description
Introduction
The -86℃ freezer is an ultra-low temperature storage solution designed for laboratories and clinical facilities that require reliable preservation of sensitive biological samples and vaccines. It supports continuous monitoring and multiple alarm functions for safe sample integrity.
Product information
Technical specifications
Accessories and options
Dimensions & weight
The -86℃ freezer is an ultra-low temperature storage solution designed for laboratories and clinical facilities that require reliable preservation of sensitive biological samples and vaccines. It supports continuous monitoring and multiple alarm functions for safe sample integrity.
Product information
- Brand: BIOBASE
- Product origin: CHINA
- Delivery time: Within 7 days
- Supply capacity: Factory Direct Supply
- Model: BDF-86V100
- Capacity: 90L
Technical specifications
- Model: BDF-86V100
- Capacity: 90L
- Temperature range: -40 ~ -86℃
- Temperature accuracy: 0.1℃
- Temperature uniformity: ≤5℃
- Temperature stability: ≤6℃
- Control system: Microprocessor control
- Display: LCD touch screen
- Alarms: high/low temperature, condenser overheat, power failure, sensor fault, ambient temperature
- Refrigeration type: Direct-cooling
- Refrigerant: Hydrocarbon mixture refrigerant
- Compressor: International brand compressor (1)
- Condenser & evaporator: Copper tube aluminium fin condenser; copper coil evaporator
- Defrost: Manual defrost
- Insulation: Polyurethane foam layer + vacuum insulation board
- Internal material: Galvanized steel with powder coating
- External material: Galvanized steel with powder coating
- Doors: Outer door ×1, inner doors ×2
- Power consumption: 460W
- Power supply: AC220V, 50Hz (standard); 220V/60Hz, 110V/60Hz (optional)
- Casters: No
- Shelf: 1
Accessories and options
- Standard: test hole, shelf, air pressure balance hole, USB
- Optional: chart temperature recorder, freezer rack and box, liquid nitrogen backup system
Dimensions & weight
- Internal size (W×D×H): 320×450×610 mm
- External size (W×D×H): 795×680×815 mm
- Package size (W×D×H): 850×740×953 mm
- Net weight: 92 kg
- Gross weight: 107 kg
