Universal operating table FY-503-E3
radiologyurologyorthopedic

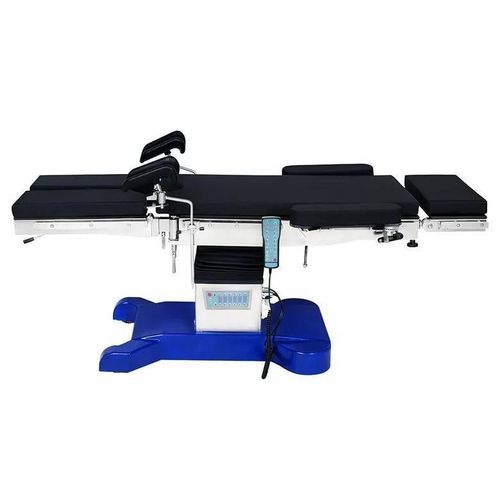

Universal operating table - FY-503-E3 - Jiangsu Fuyou Medical - radiology / urology / orthopedic

Add to favorites

Compare this product

Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications: universal, gynecological, orthopedic, urology, radiology
Operation: electric
Features: adjustable height, tilting, radiolucent
Components: with legrest, with headrest
Number of sections: 5-section
Total length: 210 cm
(82.7 in)
Total width: 53 cm
(20.9 in)

Description

Overview

Electric operating table FY-503-E3 designed for general surgery, gynecology, obstetrics, proctology, urology and orthopaedics, compatible with C-arm/X-ray imaging.

Key features

Radiolucent tabletop with 300 mm longitudinal movement to facilitate C-arm positioning and intraoperative imaging.
Five electric actuators control height, back section, Trendelenburg, lateral tilt and longitudinal travel.
Head section manual; leg section with air-spring adjustment; built-in manual kidney elevator (0–120 mm).
Main motors: Jiechang brand for smooth, quiet operation.
ABS base with recessed area for clinician foot access.
Dual control system: hand-held remote and column-mounted control.

Technical specifications

Dimensions: 2100 × 530 mm
Height adjustment (electric): 700–1000 mm
Trendelenburg (electric): ±30°
Lateral tilt (electric): ±20°
Back section (electric): +70° / -30°
Head board (manual): +45° / -90°
Leg board (manual): +15° / -90°
Table top longitudinal movement (electric): 300 mm
Built-in kidney elevator (manual): 0–120 mm

Controls and safety

One-key 0 position, one-key flex/reflex and memory key for preset positions.
Emergency stop switch, power indicator and backup battery indicator.

Indications

Suitable for general, gynecological, obstetric, proctological, urological and orthopedic procedures requiring intraoperative imaging and multi-axis positioning.
