Pharmacy refrigerator PHR-19

for vaccineshospitalblood bank

Product Overview

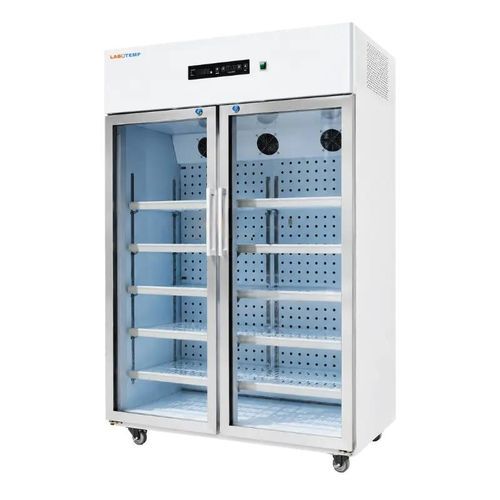

Labotemp Pharmaceutical Refrigerator PHR-19 provides 1200L of controlled cold storage with precise 2°C to 10°C temperature regulation and a forced-air cooling system to ensure uniform temperature distribution across the cabinet. Intended for hospitals, vaccination centers, pharmacies, blood banks and clinical or research laboratories, the unit supports safe storage of vaccines, medicines, reagents and biological samples with continuous monitoring to protect cold-chain integrity.

Design & Operation
The PHR-19 features a double glass door configuration with LED interior lighting for inventory visibility while reducing unnecessary door openings. A microprocessor controller with 0.1°C display resolution maintains setpoint stability. Safety functions include audible and visual alarms for high/low temperature, power failure, sensor fault, door ajar and system errors. The R134a refrigeration circuit, automatic defrost, PURF insulation and corrosion-resistant steel cabinet deliver consistent cooling performance and manageable energy consumption.

Key Features

• Precise 2°C–10°C control via microprocessor controller (0.1°C display resolution)
• Audible and visual alarms: high/low temperature, power failure, sensor fault, door ajar, system failure
• Double glass doors for clear visibility and inventory checks
• LED digital display and interior LED lighting
• Keyboard lock and password protection
• Memory retention during power interruptions
• Adjustable steel-wire shelves for flexible storage
• Lockable double glass doors and corrosion-resistant steel cabinet
• Energy-efficient R134a (CFC-free) refrigerant and automatic defrost

Applications

• Storage of vaccines and temperature-sensitive pharmaceuticals in hospitals, pharmacies and vaccination centers (2°C–10°C)
• Preservation of medicines, reagents, biological samples and diagnostic materials in blood banks and clinical laboratories
• Research facilities and controlled cold-chain environments requiring temperature monitoring, alarm protection and documentation

Technical specifications

• Capacity: 1200L
• Temperature range: 2 ~ 10°C
• Voltage: 220V / 50Hz
• Input power: 350 W
• Cooling method: Forced air cooling system
• Defrost: Auto
• Refrigerant: R134a (CFC Free)
• Power consumption: 2.5 kWh/24h
• Ambient temperature: 10 ~ 32°C
• Temperature controller: Microprocessor
• Display: LED digital display
• Interior/Exterior material: Color sprayed steel
• Door type: Double glass door
• Insulation: PURF
• Alarm: High/low temperature, power failure, sensor failure, door ajar, system failure
• Alarm type: Sound / Light
• Castors: Yes
• Lamp: LED
• Noise level: 42 dB
• Climate type: N
• Electric shock resistance: Class I Type B
• Chambers: 6
• External dimensions (W × D × H): 1200 × 740 × 1870 mm
• Package dimensions (W × D × H): 1320 × 830 × 2060 mm
• Net weight: 110 kg
• Gross weight: 130 kg
