Pharmacy refrigerator PHR-20

for vaccinesfor hospitalsblood bank

Product Overview

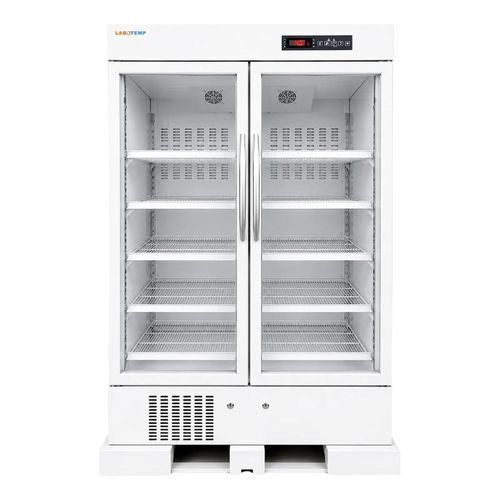

Labotemp Pharmaceutical and Vaccine Refrigerator PHR-20 provides 1006 L of controlled 2°C to 8°C storage with a dual glass door and forced-air cooling to ensure uniform temperature for vaccines, pharmaceuticals, reagents and other temperature-sensitive materials. Intended for hospitals, pharmacies, blood banks, research laboratories and vaccination centers, the PHR-20 combines visibility, precise control and regulatory-ready alarm functions to support cold-chain integrity.

Design & Benefits
The PHR-20 dual glass-door design enables rapid visual inspection of inventory while minimizing door-open time and temperature disturbance. A microprocessor controller with NTC sensor ensures accurate temperature regulation. Safety and operational continuity features include audible and visual alarms for high/low temperature, power failure, thermostat fault and door-ajar conditions, plus an 8-hour power-failure backup alarm. Antimicrobial powder coating and adjustable shelving support hygiene and flexible storage configurations.

Key Selling Points

• 1006 L high-capacity cabinet for centralized vaccine and pharmaceutical storage
• Dual glass doors for product visibility with reduced temperature loss
• Advanced audible/visual alarms and 8-hour backup for enhanced safety
• Forced-air circulation for uniform temperature distribution
• Antimicrobial powder-coated interior and exterior for infection-control environments

Features

• Large 1006 L storage capacity
• Automatic defrost system
• Digital temperature display
• 10 adjustable shelves
• Audible & visual alarms (high/low temperature, power failure, thermostat failure, door ajar)
• 8-hour power-failure backup alarm
• Antimicrobial-coated electro-galvanized steel cabinet
• Test hole for validation (1 × 25 mm)
• Lockable castors for mobility
• Microprocessor controller with NTC sensor

Applications

• Cold-chain storage of vaccines, pharmaceuticals, diagnostic reagents, biological samples and other materials requiring stable 2°C to 8°C conditions
• Suitable for hospitals, clinical laboratories, blood banks, pharmacies, vaccination centers, research institutions and pharmaceutical QC environments where temperature monitoring, alarm protection and optional data logging are required

Technical specifications
Capacity: 1006 L
Temperature range: 2 ~ 8 °C
Power supply: 220V, 110V 50/60Hz
Power consumption: 400 W
Ambient temperature: RT.10~32°C
Sensor: NTC
Controller: Microprocessor
Refrigerant: R290 (CFC Free)
Defrost: Auto
Compressor quantity: 1
Display: Digital
Audible & visible alarm: High/Low temperature, Power failure, Thermostat failure, Door ajar
Power failure backup system: 8 h
Castors: Lockable
Test hole (Qty / Φ mm): 1 / 25
Shelves quantity: 10
Sound emission: 53 dB
Internal / External material: Electro-galvanized steel with antimicrobial powder coating
Internal dimensions (W×D×H): 1100 × 684 × 1325 mm
External dimensions (W×D×H): 1220 × 860 × 1885 mm
Net weight: 189 kg
Gross weight: 213 kg
Shipping size (W×D×H): 1280 × 900 × 1950 mm
