Pump control unit ValveMate™

for dosingfor liquid handlingwith touchscreen

Overview

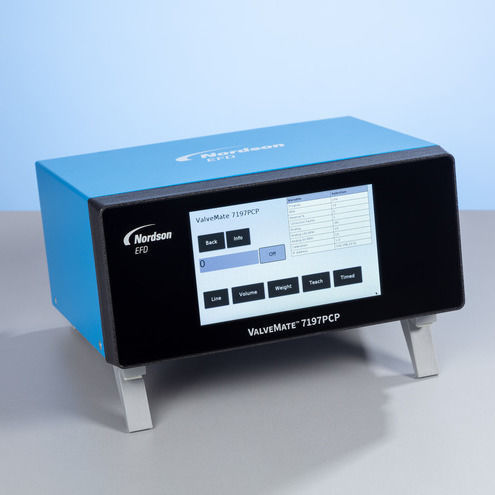

ValveMate 7197PCP controllers provide touchscreen control for 797PCP series progressive cavity (volumetric) pumps at factory workstations. They enable precise adjustment of volumetric dispensing parameters and support flexible programming modes for 1K/2K production environments.

Key capabilities

• Selectable Line, Volume, Weight or Timed programming modes for versatile dispensing strategies.
• High-resolution touchscreen interface for simplified setup and operation at the workstation.
• Programmable suck-back (retraction) for clean cut-off and reduced dripping.
• Ability to change pump rotor speed during dispensing (e.g., around corners) to maintain process control.

Part Numbers
ValveMate PCP Pump Controllers
Part # | Description | For use with
7364076 | ValveMate 7197PCP Controller | 797PCP Pumps

Resources

• Datasheet with specifications and performance characteristics.
• Operating manual and quick start guide for installation and operation.
• Firmware update files and instructions (web update requires minimum firmware 3.04).
• Application and demonstration videos illustrating volumetric pump operation.

Controllers & Control Systems - integration notes
ValveMate controllers integrate with dispense valves, 1K/2K material systems and automated dispensing equipment to deliver repeatable, high-precision volumetric dosing as part of a complete Nordson EFD dispensing system.

Additional features & technical specifications

• Typical deposit accuracy and repeatability: ±1% (application dependent).
• Integrated calibration function for initial setup and after adjustments.
• Controller family: ValveMate 7197PCP (for 797PCP series pumps).
• Programming modes: Line, Volume, Weight, Timed.
• User interface: High-resolution touchscreen.
• Firmware: web update supported; minimum firmware for web update 3.04.
