Compact automated dispensing system ASYMTEK Forte®

contactless

Overview

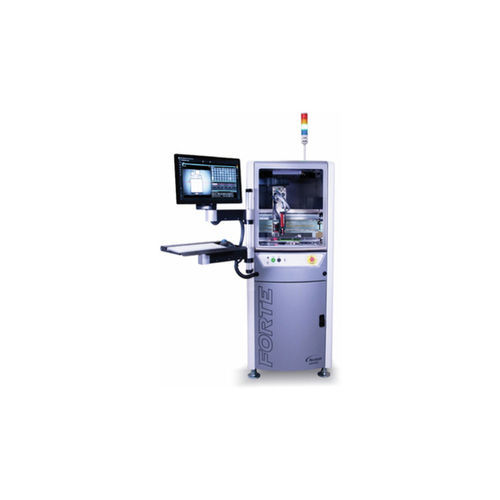

The ASYMTEK Forte® Series is an automated fluid dispensing system that combines next‑generation and proven capabilities to increase productivity by up to 50% versus ASYMTEK Spectrum II while maintaining a compact footprint. The system delivers fast acceleration, enhanced motion control, optional Forte MAX dual‑valve throughput, automated calibration, closed‑loop control and advanced Canvas® dispensing software. Industry 4.0 connectivity is provided via the ASYMTEK NE Connect API and SDK.

Main features

• Space‑saving footprint to maximise production floor efficiency.
• Up to 1.5 g acceleration for fast point‑to‑point moves.
• Forte MAX dual‑valve option (IntelliJet® ready) for higher throughput.
• Patented real‑time skew correction to improve wet dispense accuracy and yield (see patents).
• Automated calibration and fast, repeatable setup to reduce changeover time.
• Closed‑loop controls and data traceability for process stability and quality documentation.
• Canvas® fluid dispensing software included for graphical programming and offline development.

System packages

• Essential – Single‑valve configuration for high‑volume PCB, flexible circuits, MEMS and electromechanical assembly where consistent accuracy and throughput are required.
• Productivity – Forte MAX dual‑valve jetting with real‑time correction to accelerate throughput and compensate for skewed parts and component height variation.
• High Yield Productivity – Combines Forte MAX dual‑valve capability with a precision scale for maximised productivity and yield optimization.

Software
Canvas® simplifies programming and provides process visibility and control.

• Graphical programming – scan a workpiece and simulate dispense results on a virtual canvas.
• Guided wizards – step‑by‑step setup and tuning instructions.
• Quick‑reference graphs and data tiles – fast access to sensors, process controls and metrics.
• Offline programming – develop programs offline to avoid production downtime.

Supported valves and products

• IntelliJet® Jetting System (IntelliJet compatible with Forte MAX).
• ASYMTEK NexJet NJ‑8 Jetting System (ReadiSet cartridge compatible).
• DispenseJet DJ series (examples: DJ‑2100, DJ‑2200, DJ‑9500).
• ASYMTEK DV series valves (examples: DV‑01, DV‑05A, DV‑07, DV‑09).
• DV‑7000 and DV‑8000C Heli‑Flow pumps.

Supported options

• ASYMTEK Fids‑on‑the‑Fly software.
• ASYMTEK non‑contact laser height sensor.
• Calibrated Process Jetting (CPJ).
• Continuous path motion control.

Media
Product video available: "Revolutionize Your Production Floor with the Forte Series".

Technical specifications

• Series: ASYMTEK Forte® Series
• Brand: ASYMTEK (Nordson Electronics Solutions)
• Acceleration: up to 1.5 g (point‑to‑point)
• Throughput option: Forte MAX dual‑valve, IntelliJet compatible
• Accuracy: patented real‑time skew correction (US Patents 9,707,584; 10,150,131; 10,737,286; others pending)
• Setup: automated calibration and fast, repeatable setup
• Controls: closed‑loop controls and data traceability
• Software: Canvas® fluid dispensing software with graphical programming, wizards, data tiles and offline programming
• Connectivity: Industry 4.0 ready via ASYMTEK NE Connect API and SDK
• Productivity claim: up to 50% increase versus ASYMTEK Spectrum II (manufacturer data)
• Typical applications: high‑volume consumer electronics, PCB assembly, flexible circuits, MEMS, electromechanical assembly
