Fluid dispensing valve xQR41

modular

Overview

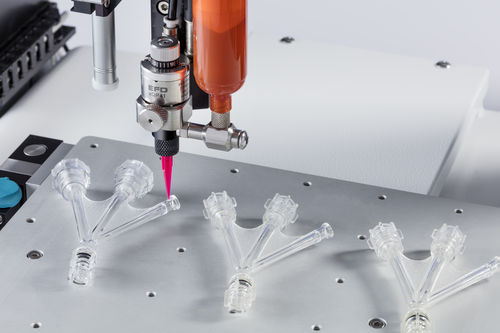

The xQR41 MicroDot needle valve is designed for precision fluid dispensing in automated assembly. Its 60% smaller form factor enables dispensing in confined spaces and at complex angles. The patented QR (Quick Release) clasp enables removal of the fluid body to replace wetted parts in seconds without removing the mounting fixture or using tools. The exchangeable modular design supports PEEK wetted parts, BackPack™ Valve Actuator, mounting block and a 90° low‑profile air‑inlet actuator, allowing configuration for a wide range of dispense applications.

Features

• Approximately 60% smaller form factor than conventional needle dispense valves
• Precision dispensing: consistent microdots down to 150 µm (0.15 mm / 0.006") diameter
• Exchangeable modular components and zero dead fluid volume
• PEEK wetted‑parts option for reactive adhesives
• 360° rotational fluid body for optimal positioning

Benefits

• Modular configurability enables application‑specific builds
• QR clasp enables fast, tool‑free replacement of wetted parts to reduce downtime
• Lightweight construction reduces wear on linear‑motion automation drives and belts
• Zero dead‑volume design minimizes material waste
• Compact footprint allows multiple valves per mounting plate to increase throughput

Part Numbers
Part # | Description | Key specification
7360817 | xQR41 with BackPack | Includes adjustable stroke control
7361761 | xQR41 with BackPack | Includes adjustable stroke control and PEEK wetted parts
7360821 | xQR41 with BackPack | Includes adjustable stroke control and bullet‑end needle
7360824 | xQR41 with Mounting Block | Includes adjustable stroke control
7361763 | xQR41 with Mounting Block | Includes adjustable stroke control and PEEK wetted parts
7360823 | xQR41 with Mounting Block | Includes adjustable stroke control and bullet‑end needle

Additional Notes

• Fluid inlet fitting part numbers: 7020671, 7361411
• Compatible modular components: BackPack Valve Actuator, mounting block, 90° low‑profile air‑inlet actuator
• Certain configurations include adjustable stroke control, bullet‑end needles or PEEK wetted parts

Technical specifications

• Model/Series: xQR41 MicroDot™
• Minimum microdot diameter: 150 µm (0.15 mm / 0.006")
• Form factor: ~60% smaller than conventional needle dispense valves
• Fluid volume: Zero dead fluid volume design
• Wetted parts option: PEEK available for reactive adhesives
• Serviceability: Patented QR (Quick Release) clasp for tool‑free, rapid wetted‑part replacement
• Configurability: Exchangeable modular design; compatible with BackPack™ Valve Actuator, mounting block, 90° low‑profile actuator
• Rotation: 360° rotational fluid body movement for optimal positioning
• Construction: Lightweight to reduce automation wear
• Optional needle: Bullet‑end needle available on select part numbers
• Control: Adjustable stroke control available on listed part numbers
• Fluid inlet fittings: part numbers 7020671 and 7361411
