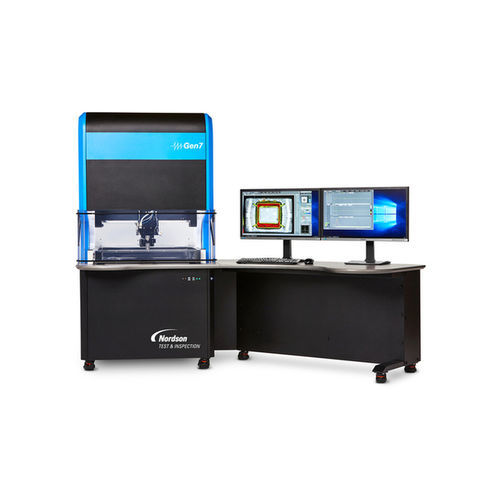

Automated inspection system AMI Gen7 C-SAM®

medicalhigh-capacitycompact

The new generation of C-SAM technology. The most sophisticated and fully featured C-SAM acoustic microscope for laboratory analysis and specialized high-resolution applications. The Gen7 C-SAM is the latest generation in Acoustic Micro Imaging. Built on the advancements made by its predecessors, the Gen7 delivers the most advanced hardware available on a C-SAM instrument. The advanced hardware allows for new features and analysis that can now be completed faster than ever before. Advanced features such as PolyGate, SonoSimulator, Virtual Rescanning Mode (VRM) and Frequency Domain Imaging (FDI) add value and confidence. With its large, easy access illuminated scanning area, the Gen7 has the capability to efficiently scan everything from a small part to a large 350mm wafer chuck. In addition to being packed with leading innovations, the Gen7 was designed with the user in mind. Its ergonomic features make it comfortable and convenient to use. The new Sonolytics 2 is an advanced operating software with new intuitive operator interface menus which help maximize results, while saving operator time. The Gen7 is truly the most advanced C-SAM, delivering a package of technology, ergonomics, and advanced Nordson Test & Inspection - developed features that cannot be found anywhere else. - See more of the image on dual 28" 4k monitors. - Do more with advanced user interface Sonolytics 2 for Windows 10. - Higher accuracy with up to six times the acquisition rate. - Expanded scanning area by 23% for your largest sample needs. - The fastest acquisition times with 5 independent motors. Specifications at a Glance Gen7 snapshot of specifications (please download brochure for all specifications.) Gen7 details: - Scan Area: 350 mm x 350 mm - Z-axis movement: 170 mm - X-axis Motor: 2x linear rod motor - Y-axis Motor: 2x linear rod motor - Z-axis Motor: Servo Motor/Lead Screw - Operating System: Windows 10 and Sonolytics 2 - Computer Hardware: Intel i7/SSD-HD - Digitizer: Up to 6 GHz with 12 bits - Image Resolution: Up to 32K by 32K image resolution - Monitors: Dual 28 inch 4k monitors - Tabletop Configuration: Straight and curved - USB: USB 3.0 - Counter Weight: Linear Motor driven Easy to Set Up Fully automated - a single button starts a scan of multiple areas and auto aligns. - Five high speed scanning motors to deliver faster scan speeds and minimal vibrations. - 23% larger scan area which securely captures images and has advanced triggering tools to obtain the perfect image. Brochures & Catalogs Downloadable Gen7 Specifications Sheet available. Key Features: - Dual 28" 4k monitors for enhanced image viewing - Advanced Sonolytics 2 user interface for Windows 10 - Up to six times the acquisition rate for higher accuracy - 23% expanded scanning area (350 mm x 350 mm) - Five independent high-speed scanning motors - Ergonomic design and intuitive software - Advanced features: PolyGate, SonoSimulator, VRM, FDI - Supports small parts to large 350mm wafer chucks - Intel i7/SSD-HD computer hardware - Digitizer up to 6 GHz, 12 bits - Image resolution up to 32K x 32K - USB 3.0 connectivity
