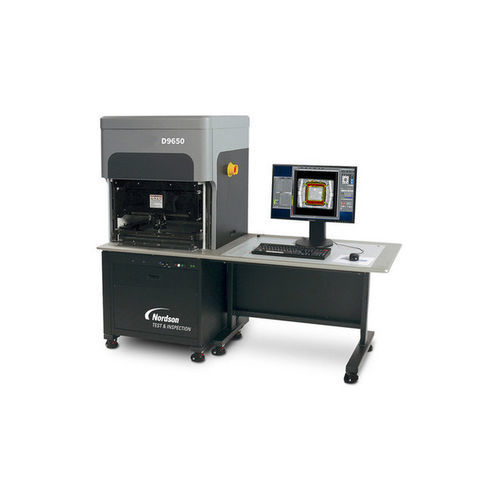

Digital microscope AMI D9650Z C-SAM®

for researchinspectioninverted

This is the first acoustic microscope with an inverted transducer to permit scanning samples from the bottom side. The D9650Z incorporates the latest C-SAM technology with enhanced features to accommodate the testing of Power Modules as well as performing standard C-SAM operations. This new system configuration is optimized for inspection of heatsink bond integrity, thickness of bond layer and wire bond welds. Powered by our Sonolytics software platform with PolyGate technology, the D9650Z is ideal for failure analysis, process development and QC screening in low-volume production environments. Features: - WaterPlume for scanning from underneath the sample keeping the sample dry. - Integrated dryer to remove excess water from samples prior to removal. - Optional Digital Image Analysis (DIA) sets automatic accept/reject criteria. - Sonolytics2 interface in Windows® 10 Ultimate for multi-language and 64 bit capabilities. - Precise scanning with tower mounted scan reference platform and sample fixture. Enhanced features to accommodate the testing of: - Power Modules as well as performing standard C-SAM operations Optimal for inspection of: - Heatsink bond integrity - Thickness of bond layer and wire bond welds - Ideal for Failure Analysis, process development and QC screening D9650Z System additional features: - Sonolytics 2 for Windows 10: Includes multi-language operations - WaterPlume: Non-immersion configuration to keep top surface of samples dry - Probing-Gate: Auto configures parameters at depths of interest - Pixel Pitch: Operator selects desired area to determine image resolution - Auto Scan: Auto aligns gain, focus and field of view for multiple locations - Movement Map: Offers an interactive graphical representation of scan area - Color Maps: For image enhancement using pre-defined color mappings - C-SAM Interactive: Provides user app support - an intuitive learning tool - Instrument settings and parameters: Auto stored for every image saved to recall previous settings - Dual Waterplume: Single and dual configurations. Simultaneously scan two parts at once - Digital File Outputs: GIF, JPG, TIF, BMP and PCX - Clean room ready: Includes ESD safe surfaces - Easy load/Unloading: Samples easily accessed from the open area scan tower Technical Specifications / Features: - Inverted transducer for bottom-side scanning - WaterPlume technology for dry sample scanning - Integrated dryer - Optional Digital Image Analysis (DIA) - Sonolytics2 software (Windows 10 Ultimate, multi-language, 64-bit) - Tower mounted scan reference platform - Optimized for Power Modules, heatsink bond, bond layer thickness, wire bond welds - Failure analysis, process development, QC screening - Auto scan, movement map, color maps, C-SAM Interactive, dual waterplume - Digital outputs: GIF, JPG, TIF, BMP, PCX - Clean room ready, ESD safe surfaces - Easy sample access
