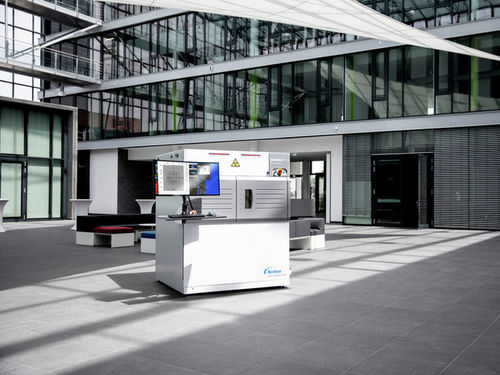

X-ray inspection system QUADRA™ 7 Pro

automaticmedical

The Quadra™ Pro series devices allow for the creation of ultra-high-resolution images of exceptional quality. With the high-performance Dual Mode NT4 X-ray tube and the Onyx detector, both designed by us, you will be able to see the finest details and immediately detect any defects. Nothing will escape you. Overview: Transforming images into solutions The Quadra™ 7 Pro redefines the standard for manual 3D or 2D inspection by offering higher resolution for back-end semiconductor applications. Thanks to its revolutionary Onyx® detector, you will benefit from exceptionally sharp images with less noise. This allows you to carry out your inspection tasks with precision and efficiency. The Quadra 7 Pro is equipped with the latest Dual Mode Quadra NT4® tube for optimal flexibility. This innovation offers multiple brightness and resolution modes that you can switch between according to the requirements of various applications. In addition to its advanced hardware, the Quadra 7 Pro features new Revalution™ software. Specifically designed for high-end semiconductor applications, the Revalution™ software offers an intuitive interface, optimized workflow, and advanced features to enhance the user experience. Technicians can thus analyze and interpret inspection data to make faster decisions, thereby increasing productivity. Zero Defect Making the invisible visible Key Technology, Made in the UK The Quadra™ 7 Pro series devices allow for the creation of ultra-high-resolution images of exceptional quality. With the high-performance Dual Mode NT4 X-ray tube and detector, both designed by us, you will be able to see the finest details and immediately detect any defects. Nothing will escape you. Quality and Quantity Without Waiting New Onyx Detector Increased speed Less noise Improved sharpness The Latest QuadraNT Tube Improved sharpness Easier to use New Revalution Software Optimized workflow Better stability Easy to use Ergonomic Design Ultra-wide curved screen Under Control Designed to carry out inspections of sensitive semiconductors with higher image resolution. The proprietary Dual Mode X-ray tube offers excellent performance and is equipped with a new advanced detector that allows you to display the finest details. Dual Mode Tube Technology The QuadraNT™ is the nerve center of the Quadra Pro. Nordson's next-generation X-ray source benefits from an additional improvement: the proprietary automatic Dual Mode technology in the Quadra 7 Pro. The tube automatically switches between two modes: - High-resolution mode, ideal for sensitive semiconductor samples - High-flux mode for thicker and denser samples The Dual Mode allows you to obtain perfectly sharp images to detect defects in the finest details. Revalution™ Everything is under control with Nordson's new Revalution™ software and its modern graphical interface as well as optimized workflow. Revalution™ offers new features and optimizes others, including: - Flexible layout - Measurements & annotations - Filtering and imaging - Main toolbar Features / Technical Specifications: - Ultra-high-resolution manual 3D or 2D inspection - Revolutionary Onyx® detector: exceptional sharpness, less noise - Dual Mode NT4® X-ray tube: high-resolution and high-flux modes - Revalution™ software: intuitive interface, optimized workflow, advanced features - Ergonomic design with ultra-wide curved screen - Ideal for back-end semiconductor applications - Made in the UK
