Speed control unit 7197PCP-DIN-NX

flowfor liquid handlingfor dosing

Overview

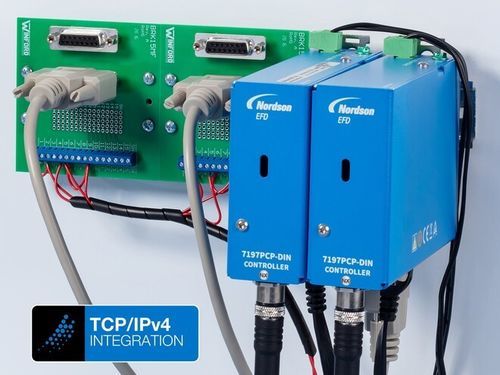

Nordson EFD 7197PCP-DIN-NX is a network-capable controller for volumetric progressive cavity pumps. It communicates directly with PLCs and other plant controllers via the Nordson NX protocol over TCP/IP (Ethernet) and is supplied in a compact DIN-rail mount form factor for machine-cabinet integration.

Key capabilities

• Ethernet connectivity using Nordson NX protocol (TCP/IP) for Smart Factory integration
• PLC register-level programming and remote configuration from an HMI or PLC
• Nordson NX Client Application for reading/writing controller registers to assist commissioning and troubleshooting
• Built-in web interface for browser-based programming and monitoring
• Real-time process feedback including encoder-count to verify rotor/pump movement
• Supports dispensing modes: Line, Volume, Weight and Timed
• Compact DIN-rail form factor designed for machine cabinet mounting
• 2K operation: two controllers required for two-component metering/mix dispensing

Typical benefits

• Centralized configuration reduces need to change settings at individual controllers on the line
• Faster diagnostics by comparing PLC-sent registers with controller feedback
• Improved process visibility and reduced downtime via remote monitoring (encoder feedback confirms pump rotation)

Compatible pumps / product family

• 797PCP Series progressive cavity pumps
• 797PCP-2K Series progressive cavity pumps (requires two controllers for 2K)

Part numbers (table)
Part # | Description | Specification
7365704 | 7197PCP-DIN-NX Controller | Compatible with 797PCP and 797PCP-2K pumps

Resources / Software (available)

• Nordson NX Client Application (register read/write and PLC integration support)
• Built-in web interface for browser-based programming and monitoring
• Firmware updates and release notes (web update requires minimum firmware version)

Technical specifications

• Network protocol: Nordson NX over TCP/IP (Ethernet)
• Programming interfaces: PLC register-level control (NX), Nordson NX Client, web (HTTP) interface
• Dispense modes: Line, Volume, Weight, Timed
• Form factor: DIN-rail mount for machine cabinet installation
• Compatibility: Designed for 797PCP and 797PCP-2K progressive cavity pumps
• 2K operation: Requires two controllers for two-component metering
• Process feedback: Encoder-count feedback for rotor/pump verification
• Firmware/web update: Web update supported; minimum firmware requirement applies
• Typical uses: Centralized remote control and monitoring in automated production lines and Smart Factory environments
