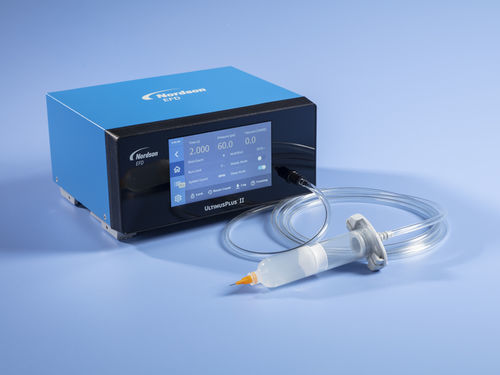

Manual fluid dispenser UltimusPlus™

automatedlaboratoryfor assembly

<b>Overview</b><br>Nordson EFD UltimusPlus™ dispensers deliver bench‑top precision fluid dispensing for manual and automated assembly. Network‑capable via Ethernet (NX protocol over TCP/IP) for Smart Factory integration, they support dispensing from disposable syringe barrels across a wide range of fluids.<br><br><b>Applications</b><br><ul><li>Electronics assembly (adhesive placement, solder paste, component bonding)</li><li>Medical device and diagnostics assembly</li><li>Industrial automation and production lines</li><li>R&D and lab bench manual dispensing with traceability requirements</li></ul><br><br><b>Operation modes</b><br><ul><li>Manual: intuitive local touchscreen, easy setup and programming, full operator lockout of time, pressure and vacuum to prevent operator variability.</li><li>Automated: NX‑capable for remote access and control via PC, PLC or plant controller using TCP/IP over Ethernet; supports remote programming, monitoring and troubleshooting.</li></ul><br><br><b>Models</b><br><ul><li>UltimusPlus I — Pressure regulator 0.7–7.0 bar (10–100 psi) for medium‑to‑higher viscosity fluids.</li><li>UltimusPlus II — Pressure regulator 0.02–1.0 bar (0.3–15 psi) for low‑viscosity and thin fluids.</li></ul><br><br><b>Key Features</b><br><ul><li>Local touchscreen UI and mirrored web interface for programming from tablets/PCs</li><li>Ethernet connectivity with NX protocol (TCP/IP) and Nordson NX Client Application support</li><li>Internal digital dispense log with timestamps; exportable to CSV via USB or FTP</li><li>MultiShot and dispense library (export/import of settings)</li><li>Full operator lockout and barcode scanner support for recipe selection</li><li>Self‑calibrating technology to ensure first‑shot accuracy and reduce setup time</li><li>Optional factory‑calibrated variants traceable to NIST standards</li></ul><br><br><b>Compatible Fluids</b><br><ul><li>Adhesives (including cyanoacrylates)</li><li>Epoxies</li><li>Greases and oils</li><li>Sealants and silicones</li><li>Solder pastes and other assembly fluids dispensed from syringe barrels</li></ul><br><br><b>Documentation & Part Numbers</b><br>Data sheet, operating manual and software packages (NX Client, UltimusPlus software) are available. Part numbers (summary): 7364361 | UltimusPlus I dispenser with NX | 0.7–7.0 bar (10–100 psi); 7364475 | UltimusPlus I with NX, calibrated* | 0.7–7.0 bar; 7364362 | UltimusPlus II dispenser with NX | 0.02–1.0 bar (0.3–15 psi); 7364476 | UltimusPlus II with NX, calibrated* | 0.02–1.0 bar.<br><br><b>Technical specifications</b><br><ul><li>Models: UltimusPlus I & II</li><li>Network: Ethernet, NX protocol via TCP/IP</li><li>Pressure ranges: I = 0.7–7.0 bar (10–100 psi); II = 0.02–1.0 bar (0.3–15 psi)</li><li>Interfaces: Local touchscreen, web UI, Nordson NX Client support</li><li>Data logging: internal dispense log, CSV export via USB or FTP</li><li>Control: operator lockout, MultiShot, recipe library, barcode support</li><li>Calibration: self‑calibrating tech; optional factory calibration traceable to NIST</li><li>Compatibility: disposable syringe barrels, tips and EFD consumables for adhesives, epoxies, silicones, solder pastes, etc.</li><li>Automation: programmable via PLC/plant controller using TCP/IP; registers accessible for PLC development and troubleshooting</li></ul><br><br><b>Notes</b><br>Calibrated models are adjusted to EFD specifications traceable to NIST standards.
