Production centrifuge ProcessMate™ 5000

laboratoryuniversalfor sample preparation

Overview

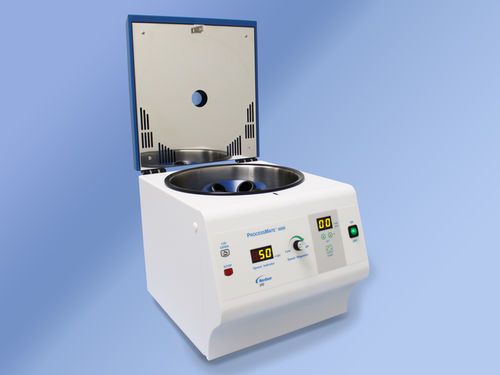

The ProcessMate 5000 bench-top syringe centrifuge removes entrapped air from fluids packaged in syringes to improve process control prior to pneumatic or mechanical dispensing. It is designed for production and lab environments where reliable degassing of low- to thin-viscosity fluids is required. The unit accepts common syringe sizes and provides user-selectable speed control for appropriate G-force settings.

Key features

• Adjustable speed control (user-selectable G-force)
• Secure adapters for 3 cc, 5 cc and 10 cc syringe barrels
• Compatible with syringe capacity range 3 cc–30 cc
• Fixed-angle rotor for consistent separation
• Electric brake for rapid stop
• Audible end-of-run indicator and safety lid-lock

Compatible fluids

• Two-part epoxies
• Frozen (low-temperature) epoxies
• RTV silicones
• Greases and pastes
• Other low- to medium-viscosity dispensing fluids

Part numbers
ProcessMate 5000 Universal Centrifuge
Part # — Description — For use with
7015542 — 100–240 VAC centrifuge — Two-part epoxies, frozen epoxies, RTVs, greases, various other fluids

Technical specifications

• Model: ProcessMate™ 5000
• Syringe capacity: 3 cc to 30 cc
• Adapters: secure 3 cc, 5 cc and 10 cc syringe barrels
• Speed control: adjustable (user-selectable G-force for low- to thin-viscosity fluids)
• Rotor: fixed-angle rotor
• Safety: lid-lock feature
• Brake: electric brake for rapid stopping
• End-of-run: audible indicator
• Power: 100–240 VAC (part number 7015542 for 100–240 VAC model)
