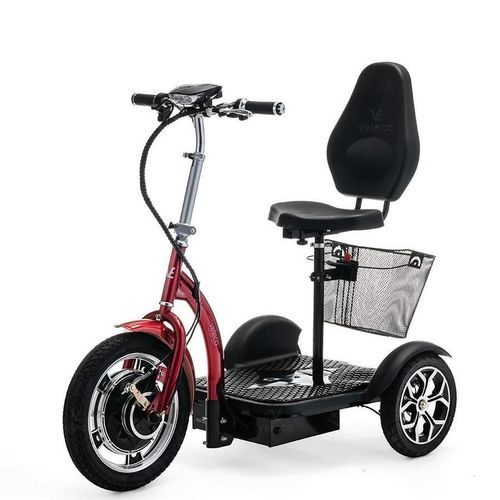

Electric mobility scooter 16-RED

3-wheelfoldingwith basket

SPECIFICATIONS

OVERVIEW
Maximum user weight: 120 kg
Scooter weight: 51 kg
Hill climbing ability: 17°
Typical range per single charge: 25–30 km
Maximum speed: 12 km/h (8 mph)
Class: Class-2 mobility scooter (road use restrictions may apply)
Turning radius: 90 cm
Operating temperature (electronics): -10 °C to +40 °C
Recommended storage humidity: ~30%

MOTOR
Power: 750 W
Voltage: 48 V

BATTERY
Type: Lead-acid gel
Capacity: 20 Ah
Voltage: 48 V
Life cycle: Approximately 600 full charge cycles
Charge time: ≈8 hours

BRAKES
Front: Drum brake
Rear: Manual disc brake
Magnetic brake: No

WHEELS
Number: 3
Tyres: Inflatable
Sizes: Front 2.5-16", Rear 2.25-12.5"
Recommended tyre pressure: 2.5 bar (36 PSI)

LIGHTS
Low beam headlight: LED (integrated)
Brake light: LED (integrated)

FEATURES

• Horn
• Parking brake
• Electric LED display
• Adjustable and foldable tiller/handlebar
• Adjustable and removable seat

Additional information
Color: Red
Wheels: 3
Model: ZT16
Battery type: Lead-Acid Gel
Brand: Veleco
Scooter type: Electric mobility scooter
Vehicle autonomy: Level 0

Technical specifications

• Max user weight: 120 kg
• Scooter weight: 51 kg
• Hill climbing: 17°
• Range: 25–30 km per charge
• Max speed: 12 km/h (8 mph)
• Motor: 750 W, 48 V
• Battery: Lead-Acid Gel 48 V, 20 Ah — ≈8 h charge time, ~600 cycles
• Brakes: Front drum, rear manual disc
• Tyres: Inflatable — F 2.5-16", R 2.25-12.5" (2.5 bar / 36 PSI)
• Turning radius: 90 cm
• Operating temp (electronics): -10 °C to +40 °C
