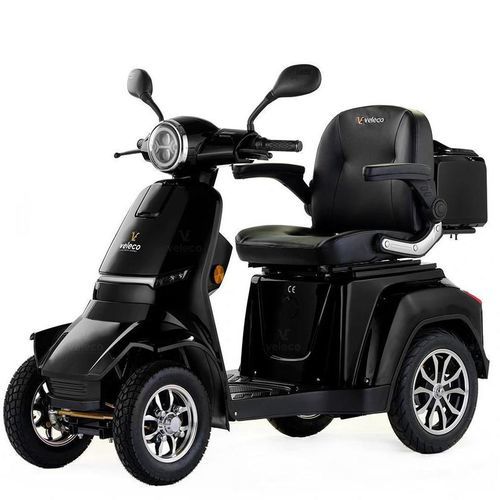

Electric mobility scooter GRA-LI-BLA

4-wheel

OVERVIEW
Max user weight: 160 kg / 25.2 st
Scooter weight: 109 kg / 19.7 st
Hill climbing ability: 17°
Maximum range on single charge: 45–60 km / 28–37.3 mi
Maximum speed: 8 mph / 12 km/h
Seat adjustment: Yes
Suspension: Full suspension
Class: Class-3 (DVLA compliant)
Turning radius: 220 cm / 86.6"
Operating temperature (electronics): -10 °C to +40 °C
Recommended storage/use humidity: 30%

MOTOR
Power: 1000 W
Voltage: 60 V

BATTERY
Type: Lithium‑Ion
Capacity: 20 Ah
Voltage: 60 V
Cycle life: ≈600 full charges
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 4
Tyres: Pneumatic tubeless
Size: Front 3.00‑8” / Rear 3.00‑10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam: LED (integrated)
High beam: LED (integrated)
Tail lights: LED (integrated)
DRL: LED (integrated)
Indicators: LED (integrated)
Brake light: LED (integrated)
Hazard lights: LED (integrated)

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Alarm
• Remote control
• Comfortable adjustable seat

ADDITIONAL INFORMATION
Color: Black
Model: Gravis
Brand: Veleco
Battery: Lithium‑Ion

TECHNICAL SPECIFICATIONS

• SKU: GRA-LI-BLA
• Max user weight: 160 kg / 25.2 st
• Scooter weight: 109 kg / 19.7 st
• Hill climbing ability: 17°
• Maximum range: 45–60 km (28–37.3 mi) per charge
• Maximum speed: 8 mph / 12 km/h
• Acceleration: Right‑hand scooter throttle
• Seat: adjustable
• Suspension: full suspension
• DVLA compliance: Yes (Class‑3)
• Vehicle autonomy level: 0
• Recommended storage/use humidity: 30%
• Operating temperature (electronics): -10 °C to +40 °C
• Turning radius: 220 cm / 86.6"
• Motor: 1000 W, 60 V
• Battery: Lithium‑Ion, 20 Ah, 60 V, ≈600 full cycles, charge time ≈8 h
• Brakes: front hydraulic disc, rear drum, no magnetic brake
• Wheels/tyres: 4, pneumatic tubeless; front 3.00‑8”, rear 3.00‑10”; tyre pressure 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: full set of integrated LED lights (low/high beam, tail, DRL, indicators, brake, hazard)
• Onboard features: horn, mirrors, steering lock, parking brake, LED display, USB port, alarm, remote control, comfortable seat
