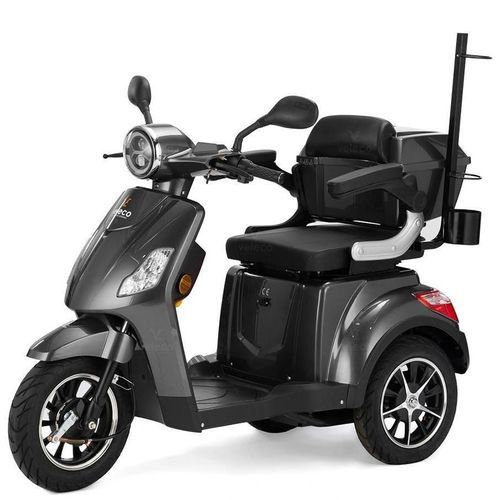

Electric mobility scooter DRA-GRA

3-wheel

OVERVIEW
The Veleco Draco is a Class-3 mobility scooter designed for outdoor and mixed-use environments. It supports users up to 160 kg and is available with Lead‑Acid Gel or optional Lithium‑Ion batteries. Full suspension and a compact 3‑wheel layout provide stability and manoeuvrability for care facilities, assisted‑living providers and rental fleets.

APPLICATIONS
Suitable for care homes, rehabilitation centres, community transport services and professional rental operations. Designed for repeated daily use and straightforward maintenance.

MOTOR
Power: 800 W
Voltage: 48 V

BATTERY
Type: Lead‑Acid Gel (upgradeable to Lithium‑Ion)
Capacity: 20 Ah
Voltage: 48 V
Life cycle: ≈600 full charges
Charge time: ≈8 h
Estimated range (single charge): 45–50 km (depending on battery type, load and terrain)

BRAKES & WHEELS
Brakes: Front and rear drum brakes plus magnetic brake for parking and safety
Wheels: 3 pneumatic tubeless tyres, size 3.00‑10”
Turning radius: 165 cm / 65”
Hill climbing ability: 17°

LIGHTS & SAFETY
Full LED lighting set (low/high beam, position, tail, indicators, brake and hazard lights). Integrated indicators and P21/5 LED signaling. Steering lock, parking brake and remote alarm increase operational safety.

FEATURES

• Electric LED display
• USB port
• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Stick holder
• Alarm
• Remote control

TECHNICAL SPECIFICATIONS

• Model name: Draco
• Brand: Veleco
• Color: Gray
• Class: Class‑3 mobility scooter
• Max user weight: 160 kg
• Scooter weight: 103 kg (Lead‑Acid Gel), 88 kg (Lithium‑Ion)
• Maximum speed: 8 mph / 12 km/h
• Motor: 800 W, 48 V
• Battery: 20 Ah Lead‑Acid Gel (upgradeable to Lithium‑Ion), 48 V, ≈600 cycles, ≈8 h charge
• Range: 45–50 km
• Tyres: Pneumatic tubeless 3.00‑10”
• Operating temperature (electronics): -10 °C to +40 °C
• Compliant with DVLA requirements
