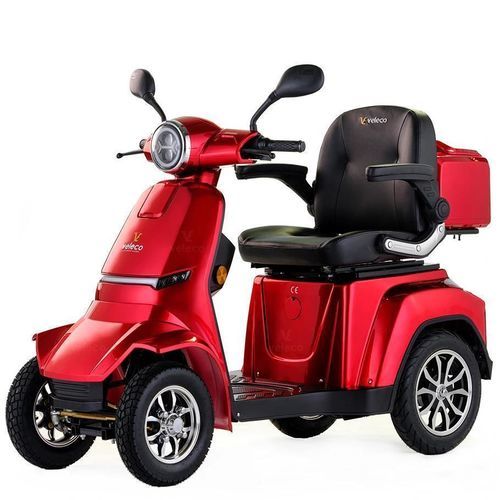

Electric mobility scooter GRA-LI-RED

4-wheel

OVERVIEW
Class‑3 mobility scooter for outdoor and on‑road use. Max user weight: 160 kg. Scooter weight: 109 kg. Hill climbing: 17°. Range per charge: 45–60 km. Maximum speed: 8 mph / 12 km/h. Turning radius: 220 cm.

MOTOR
Power: 1000 W. Voltage: 60 V.

BATTERY
Type: Lithium‑Ion. Capacity: 20 Ah. Voltage: 60 V. Life cycle: approximately 600 full charges. Charge time: ≈8 h.

BRAKES & WHEELS
Front brake: Hydraulic disc. Rear brake: Drum. Magnetic brake: No. Wheels: 4. Tyres: Pneumatic tubeless. Sizes: F 3.00‑8" / R 3.00‑10". Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI.

LIGHTS & SAFETY
Full LED lighting: low/high beam, tail, DRL, indicators, brake and hazard lights. Compliant with DVLA requirements. Working temperature (electronics): −10 °C to +40 °C. Storage humidity recommended: 30%.

FEATURES

• Horn
• Rearview mirrors
• Steering lock
• Parking brake
• Electric LED display
• USB port
• Alarm
• Remote control
• Comfortable adjustable seat

TECHNICAL SPECIFICATIONS

• SKU: GRA-LI-RED
• Brand: Veleco
• Model: Gravis
• Color: Red
• Battery: Lithium‑Ion, 20 Ah, 60 V
• Motor: 1000 W, 60 V
• Maximum speed: 8 mph / 12 km/h
• Range (single charge): 45–60 km
• Charge time: ≈8 h
• Scooter weight: 109 kg
• Maximum user weight: 160 kg
• Scooter class: Class‑3
• Turning radius: 220 cm
