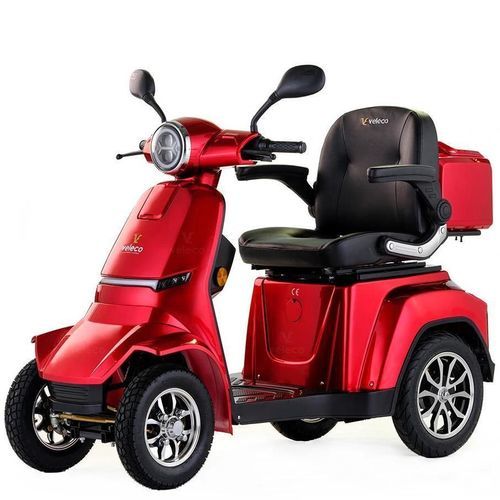

Electric mobility scooter GRA-RED

4-wheel

DESCRIPTION
The Veleco Gravis is a Class-3 mobility scooter designed for on-road and outdoor use, offering a long single-charge range and full suspension for user comfort and stability.

OVERVIEW
Max user weight: 160 kg / 25.2 st
Scooter weight: 125 kg / 19.7 st
Hill climbing ability: 17°
Maximum range on single charge: 45-60 km / 28-37.3 mi
Speed of response: Low
Maximum speed: 8 mph / 12 km/h
Acceleration system: Right-hand scooter throttle
Seat adjustment: Yes
Suspension: Full
Compliant with DVLA requirements: Yes
Scooter class: Class-3
Vehicle autonomy: Level 0
Optimal air humidity for storage and use: 30%
Working temperature of electronic parts: -10 °C to +40 °C
Turning radius: 220 cm / 86.6”

MOTOR
Power: 1000 W
Voltage: 60 V

BATTERY
Type: Lead-Acid Gel
Capacity: 20 Ah
Voltage: 60 V
Life cycle: 600 full charges
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 4
Type of tyres: Pneumatic tubeless
Size: F 3.00-8” / R 3.00-10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam headlight: LED (integrated with lamp)
High beam headlight: LED (integrated with lamp)
Tail lights: LED (integrated with lamp)
Daytime running lights: LED (integrated with lamp)
Signal lights: LED (integrated with lamp)
Brake light: LED (integrated with lamp)
Hazard lights: LED (integrated with lamp)

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB Port
• Alarm
• Remote control
• Comfortable seat
