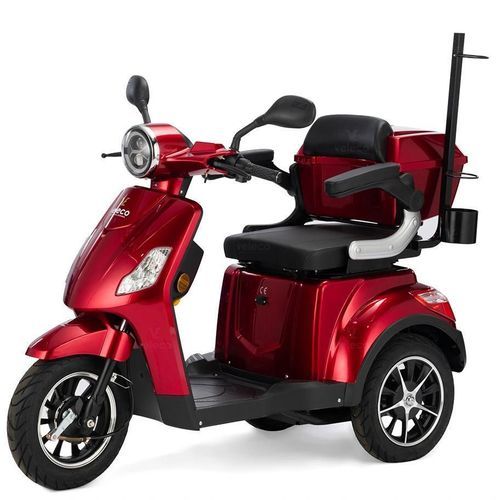

Electric mobility scooter DRA-RED3-wheel
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Number of wheels
- 3-wheel
Description
Overview
Motor
Battery
Brakes & Wheels
Lighting & Safety
Features & Accessories
Technical specifications
Applications & compliance
- Three‑wheel, Class‑3 mobility scooter designed for on‑road and urban use. DVLA compliant (UK).
- Max user weight: 160 kg. Maximum speed: 12 km/h (8 mph). Range per charge: 45–50 km (single charge, depending on battery and conditions).
- Turning radius: 165 cm. Hill climbing ability: 17°.
Motor
- Power: 800 W brushless motor.
- Voltage: 48 V — designed for steady urban speeds and sustained climbs.
Battery
- Standard: 48 V, 20 Ah Lead‑Acid Gel (≈8 h charge time).
- Optional upgrade: Lithium‑Ion battery (reduced vehicle weight to 88 kg, extended usability).
- Life cycle: ~600 full charge cycles (Lead‑Acid Gel).
Brakes & Wheels
- Front and rear drum brakes with magnetic brake support.
- Three pneumatic tubeless tyres, size 3.00‑10”. Tyre pressure: 2.25 bar (225 kPa / 32.5 PSI).
Lighting & Safety
- Integrated LED low/high beam, position and tail lights.
- LED front/rear indicators and brake lights; hazard lights included.
- Safety features: horn, steering wheel lock, parking brake, alarm, remote control.
Features & Accessories
- Adjustable seat with full suspension for user comfort.
- Electric LED display and USB charging port.
- Rearview mirrors, stick holder, remote control for locking/unlocking.
Technical specifications
- Model: Draco
- Brand: Veleco
- Color: Red
- Wheels: 3
- Scooter class: Class‑3 (road‑legal)
- Vehicle weight: 103 kg (Lead‑Acid Gel) / 88 kg (Lithium‑Ion)
- Battery capacity: 20 Ah, 48 V
- Charge time: ≈8 h
- Max range: 45–50 km
- Max speed: 12 km/h (8 mph)
- Turning radius: 165 cm
- Operating temperature (electronics): -10 °C to +40 °C
- Optimal storage/use humidity: 30%
Applications & compliance
- Intended for assisted‑mobility use in care homes, assisted living, hospitals, and municipal transport where Class‑3 vehicles are permitted.
- Complies with DVLA requirements for Class‑3 use (UK). Check local regulations for road use in other markets.
- Maintenance notes: follow battery charging cycles and tyre pressure recommendations to preserve range and component life.
