Electric mobility scooter DRA-BLA

3-wheel

OVERVIEW

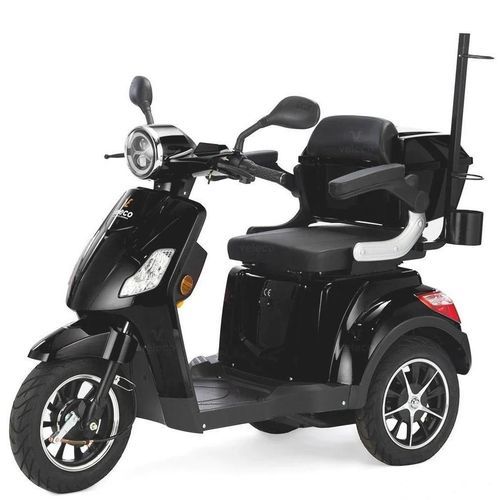

The Veleco Draco is a class-3 mobility scooter designed for outdoor and mixed indoor/outdoor use. It supports a maximum user weight of 160 kg and offers full suspension and an adjustable seat for user comfort. Available with Lead-Acid Gel battery (standard) or upgradeable to Lithium‑Ion.

MOTOR & BATTERY

• Motor power: 800 W, 48 V
• Battery: Lead-Acid Gel (upgradeable to Lithium‑Ion), 20 Ah, 48 V
• Battery life cycle: ≈600 full charges; charge time: ≈8 h
• Estimated range per charge: 45–50 km (depending on battery and conditions)

WHEELS & BRAKES

• Configuration: 3 wheels, pneumatic tubeless tyres 3.00-10”
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Brakes: front drum, rear drum, magnetic brake
• Turning radius: 165 cm / 65”

LIGHTS & CONTROLS

• LED low/high beam, position and tail lights
• Front and rear signal lights: P21/5 W LED / R10W 12V
• Brake and hazard lights: P21/5 W LED
• Electric LED display with push-button acceleration
• USB port for device charging

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Stick holder
• Alarm
• Remote control

ADDITIONAL INFORMATION
Color: Black
Wheels: 3 Wheels
Model: Draco
Battery: Lead-Acid (upgradeable to Lithium‑Ion)
Brand: Veleco
Scooter type: Electric Bike
Scooter class: Class-3
Compliant with DVLA requirements: Yes

TECHNICAL SPECIFICATIONS

• Max user weight: 160 kg / 25.2 st
• Scooter weight: 103 kg (Lead-Acid Gel) / 88 kg (Lithium‑Ion)
• Maximum speed: 8 mph / 12 km/h
• Hill climbing ability: 17°
• Working temperature (electronics): -10 °C to +40 °C
