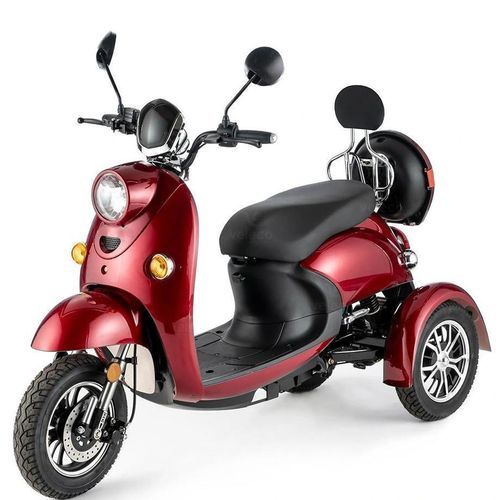

Electric mobility scooter 63-RED

3-wheel

SPECIFICATIONS
OVERVIEW
Max user weight: 199 kg / 31.3 st
Scooter weight: 94 kg / 14.8 st
Hill climbing ability: 17°
Maximum range on single charge: 40-60 km / 24.9-37.3 mi
Speed of response: Medium
Maximum speed: 8 mph / 12 km/h
Acceleration system: Right-hand scooter throttle
Seat adjustment: No
Suspension: Full
Compliant with DVLA requirements: Yes
Scooter class: Class-3
Vehicle autonomy: Level 0
Optimal air humidity for storage and use: 30%
Working temperature of electronic parts: -10 °C to +40 °C
Turning radius: 195 cm / 76.8”

MOTOR
Power: 650 W
Voltage: 60 V

BATTERY
Type: Lead-Acid Gel
Capacity: 20 Ah
Voltage: 60 V
Life cycle: 600 full charges
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 3
Type of tyres: Pneumatic tubeless
Size: 3.00-10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam headlight: S2
High beam headlight: S2
Position lights: W5W
Tail lights: P21/5 W
Daytime running lights: S2
Signal lights: R10W 12V
Brake light: P21/5 W
Hazard lights: R10W 12V

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• Alarm
• Remote control

ADDITIONAL INFORMATION
Color: Red
Wheels: 3 Wheels
Model: ZT63
Battery: Lead-Acid
Brand: Veleco
Scooter type: Electric Scooter
Scooter class: 3rd Class Mobility Scooter

TECHNICAL SPECIFICATIONS

• Max user weight: 199 kg / 31.3 st
• Scooter weight: 94 kg / 14.8 st
• Hill climbing ability: 17°
• Range (single charge): 40-60 km / 24.9-37.3 mi
• Maximum speed: 8 mph / 12 km/h
• Acceleration system: Right-hand scooter throttle
• Seat adjustment: No
• Suspension: Full
• DVLA compliant: Yes
• Turning radius: 195 cm / 76.8”
• Motor power: 650 W, Voltage: 60 V
• Battery type: Lead-Acid Gel, Capacity: 20 Ah, Voltage: 60 V, Life cycle: 600 full charges, Charge time ≈8 h
• Brakes: Front hydraulic disc, Rear drum
• Wheels: 3, Tyres: Pneumatic tubeless 3.00-10”, Tyre pressure 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: Low/High beam S2, Position W5W, Tail P21/5 W, DRL S2, Signals R10W 12V, Brake P21/5 W, Hazard R10W 12V
• Features: Horn, Rearview mirrors, Steering wheel lock, Parking brake, Electric LED display, Alarm, Remote control
