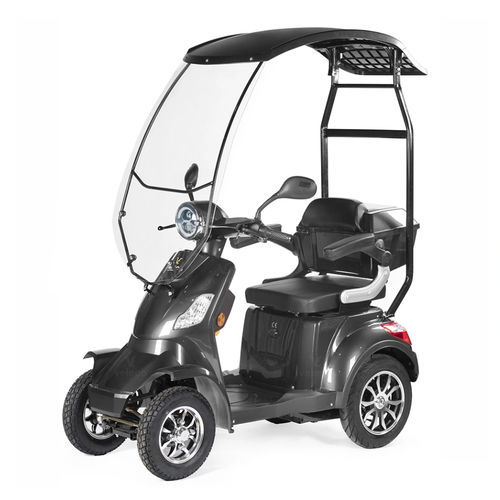

Electric mobility scooter FAS-CAN-GRA

bariatric4-wheelwith cab

SPECIFICATIONS

OVERVIEW
Max user weight: 160 kg / 25.2 st
Scooter weight: 133 kg / 20.9 st (with Lead-Acid Gel battery) / 117 kg / 18.4 st (with Lithium-Ion battery)
Hill climbing ability: 17°
Maximum range on single charge: 45–60 km / 28–37.3 mi
Speed of response: Low
Maximum speed: 8 mph / 12 km/h
Acceleration system: Right-hand scooter throttle
Seat adjustment: Yes
Suspension: Full
Compliant with DVLA requirements: Yes
Scooter class: Class-3
Vehicle autonomy: Level 0
Optimal air humidity for storage and use: 30%
Working temperature of electronic parts: -10 °C to +40 °C
Turning radius: 220 cm / 86.6”

MOTOR
Power: 1000 W
Voltage: 60 V

BATTERY
Type: Lead-Acid Gel (upgradeable to Lithium-Ion)
Capacity: 20 Ah
Voltage: 60 V
Life cycle: 600 full charges
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 4
Type of tyres: Pneumatic tubeless
Size: Front 3.00-8” / Rear 3.00-10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam headlight: LED (integrated with lamp)
High beam headlight: LED (integrated with lamp)
Position lights: LED (integrated with lamp)
Tail lights: LED (integrated with lamp)
Front and rear signal lights: P21/5 W LED / R10W 12V
Brake light: P21/5 W LED
Hazard lights: P21/5 W LED / R10W 12V

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Roof and windshield
• Alarm
• Remote control

Additional product information
Color: Gray
Wheels: 4 Wheels
Model: Faster
Battery: Lead-Acid (upgradeable to Lithium-Ion)
Brand: Veleco
Scooter type: Electric scooter
Scooter class: 3rd Class Mobility Scooter

Technical specifications

• Max user weight: 160 kg
• Scooter weight: 133 kg (Lead-Acid Gel) / 117 kg (Lithium-Ion)
• Hill climbing ability: 17°
• Range per charge: 45–60 km
• Maximum speed: 12 km/h (8 mph)
• Motor power: 1000 W, 60 V
• Battery: 20 Ah, 60 V (Lead-Acid Gel; upgradable to Lithium-Ion)
• Battery life cycle: ~600 full charges; charge time ≈8 h
• Brakes: Front hydraulic disc, rear drum
• Tyres: Pneumatic tubeless; F 3.00-8” / R 3.00-10”
• Turning radius: 220 cm
• Operating temp (electronics): -10 °C to +40 °C
• Complies with DVLA requirements; Scooter class: Class-3
