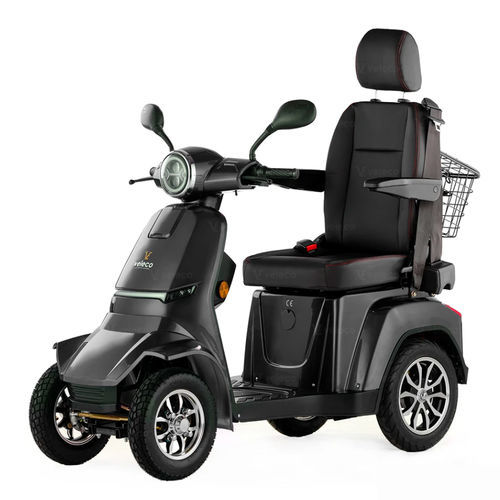

Electric mobility scooter GRA-CAP-LI-BLA

4-wheelwith basket

SPECIFICATIONS

OVERVIEW
Max user weight: 160 kg / 25.2 st
Scooter weight: 109 kg / 19.7 st
Hill climbing ability: 17°
Maximum range on single charge: 45–60 km / 28–37.3 mi
Maximum speed: 8 mph / 12 km/h
Acceleration system: Right‑hand scooter throttle
Seat adjustment: Yes (captain seat)
Suspension: Full suspension
Compliant with DVLA requirements: Yes
Scooter class: Class‑3
Turning radius: 220 cm / 86.6”

MOTOR
Power: 1000 W
Voltage: 60 V

BATTERY
Type: Lithium‑Ion
Capacity: 20 Ah
Voltage: 60 V
Life cycle: Approximately 600 full charge cycles
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 4
Type of tyres: Pneumatic tubeless
Size: F 3.00‑8” / R 3.00‑10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Full LED lighting set: low/high beam, tail, DRL, signals, brake, hazard (integrated)

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Alarm
• Remote control
• Comfortable captain seat with adjustment

Product attributes
Color: Black
Model: Gravis
Brand: Veleco
Battery: Lit‑Ion

Technical specifications

• Max user weight: 160 kg / 25.2 st
• Scooter weight: 109 kg / 19.7 st
• Hill climbing ability: 17°
• Range per charge: 45–60 km / 28–37.3 mi
• Maximum speed: 8 mph / 12 km/h
• Acceleration: Right‑hand throttle
• Seat: Adjustable captain seat
• Suspension: Full
• Compliance: DVLA requirements
• Scooter class: Class‑3
• Turning radius: 220 cm / 86.6”
• Motor: 1000 W, 60 V
• Battery: Lithium‑Ion, 20 Ah, 60 V, ≈8 h charge, ~600 cycles
• Brakes: Front hydraulic disc, rear drum
• Wheels: 4 pneumatic tubeless (F 3.00‑8” / R 3.00‑10”)
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: Full integrated LED set
• Features: horn, mirrors, steering lock, parking brake, LED display, USB, alarm, remote
• Storage/use humidity: Optimal 30%
• Electronics operating temperature: -10 °C to +40 °C
