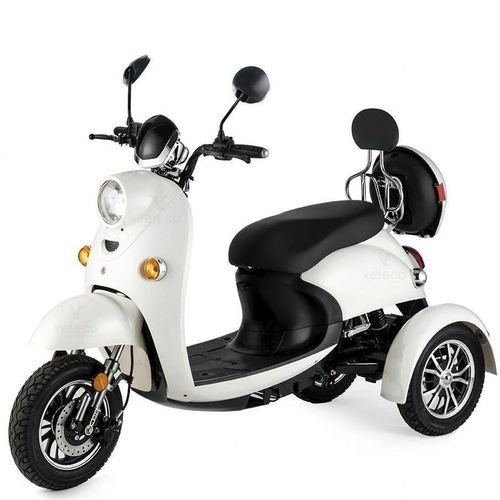

Electric mobility scooter 63-WHI

3-wheel

OVERVIEW
3-wheel Class-3 mobility scooter Veleco ZT63 Retro designed for outdoor and urban use. Full suspension and a maximum user weight of 199 kg. Compliant with DVLA requirements. Color: White.

PERFORMANCE
Maximum speed: 12 km/h (8 mph). Range per charge: 40–60 km. Hill climbing ability: 17°. Turning radius: 195 cm. Speed of response: Medium. Vehicle autonomy: Level 0. Optimal storage/use humidity: 30%. Electronic parts operating temperature: -10 °C to +40 °C.

MOTOR & BATTERY
Motor power: 650 W, Voltage: 60 V. Battery type: Lead‑Acid Gel, Capacity: 20 Ah, Voltage: 60 V. Battery life cycle: 600 full charges. Typical charge time: ≈8 h.

BRAKES & WHEELS
Front brake: Hydraulic disc. Rear brake: Drum. Magnetic brake: No. Wheels: 3, pneumatic tubeless tyres size 3.00-10”. Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI.

LIGHTING & SAFETY
Low beam: S2. High beam: S2. Position lights: W5W. Tail lights: P21/5 W. Daytime running lights: S2. Signal lights: R10W 12V. Brake light: P21/5 W. Hazard lights: R10W 12V. Complies with DVLA requirements for Class-3 operation.

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• Alarm
• Remote control

TECHNICAL SPECIFICATIONS

• Model: ZT63 (ZT 63 Retro)
• Brand: Veleco
• Max user weight: 199 kg / 31.3 st
• Scooter weight: 94 kg / 14.8 st
• Maximum range on single charge: 40–60 km / 24.9–37.3 mi
• Maximum speed: 8 mph / 12 km/h
• Hill climbing ability: 17°
• Turning radius: 195 cm / 76.8”
• Acceleration system: Right-hand scooter throttle
• Seat adjustment: No
• Suspension: Full
• Motor: 650 W, 60 V
• Battery: Lead-Acid Gel, 20 Ah, 60 V, ≈8 h charge time, 600 life cycles
• Brakes: Front hydraulic disc, Rear drum
• Wheels/tyres: 3, pneumatic tubeless, 3.00-10”
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Lights: Low beam S2, High beam S2, Position W5W, Tail P21/5 W, Daytime running lights S2, Signal R10W 12V, Brake P21/5 W, Hazard R10W 12V
