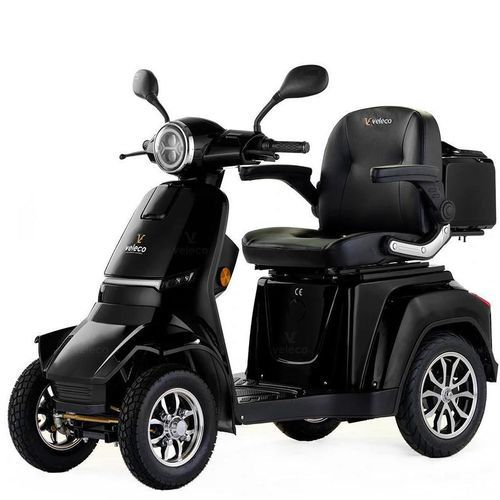

Electric mobility scooter GRA-BLA

4-wheel

OVERVIEW
The Veleco Gravis is a four-wheel class-3 mobility scooter designed for on-road and long-range use. It supports a maximum user weight of 160 kg, delivers a top speed of 12 km/h, and offers a single-charge range of 45–60 km. The vehicle features full suspension and a turning radius of 220 cm, suitable for outdoor and mixed-use routes.

MOTOR

• Power: 1000 W
• Voltage: 60 V

BATTERY

• Type: Lead-acid gel
• Capacity: 20 Ah
• Voltage: 60 V
• Life cycle: ~600 full charges
• Charge time: ≈8 h

BRAKES

• Front: Hydraulic disc
• Rear: Drum
• Magnetic brake: No

WHEELS

• Amount: 4
• Tyres: Pneumatic tubeless
• Size: Front 3.00-8" / Rear 3.00-10"
• Tyre pressure: 2.25 bar (225 kPa / 32.5 PSI)

LIGHTS

• Headlights: LED (low and high beam integrated)
• Tail lights: LED
• Daytime running lights: LED
• Signal lights: LED
• Brake light & hazard: LED

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Alarm
• Remote control
• Comfortable seat (adjustable)

ADDITIONAL INFORMATION

• Color: Black
• Production year: 2021
• Model: Gravis
• Brand: Veleco
• Compliant with DVLA requirements
• Scooter class: Class-3
• Vehicle autonomy: Level 0
• Operating temperature (electronics): -10 °C to +40 °C
• Optimal storage/use humidity: 30%

TECHNICAL SPECIFICATIONS

• Max user weight: 160 kg
• Scooter weight: 125 kg
• Maximum speed: 12 km/h (8 mph)
• Maximum range (single charge): 45–60 km
• Motor power: 1000 W
• Motor voltage: 60 V
• Battery type: Lead-acid gel
• Battery capacity: 20 Ah
• Battery lifecycle: ~600 full charges
• Battery charge time: ≈8 h
• Hill climbing ability: 17°
• Suspension: Full
• Brakes: Front hydraulic disc, Rear drum
• Wheels/tyres: Pneumatic tubeless — F 3.00-8" / R 3.00-10"
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Turning radius: 220 cm
• Lights: Full LED lighting (headlights, tail, DRL, signals, brake, hazard)
• Features: Horn, mirrors, steering lock, parking brake, LED display, USB port, alarm, remote control, adjustable comfortable seat
• Compliance: DVLA requirements; Scooter class: Class-3; Vehicle autonomy: Level 0
• Operating conditions: Electronics -10 °C to +40 °C; Optimal humidity: 30%
