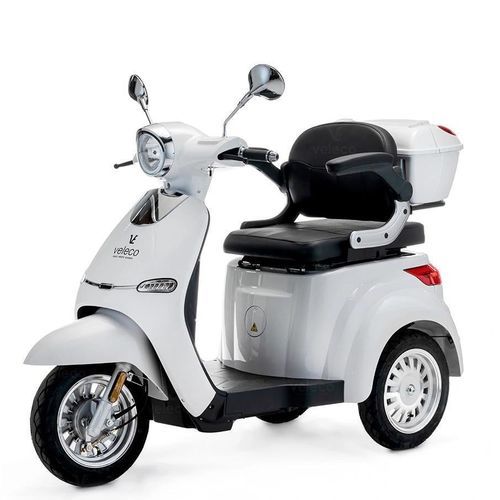

Electric mobility scooter CRI-WHI

3-wheel

SPECIFICATIONS
OVERVIEW
Max user weight: 160 kg / 25.2 st
Scooter weight: 120 kg / 18.9 st
Hill climbing ability: 17°
Maximum range on single charge: 40-60 km / 24.9-37.3 mi
Speed of response: Low
Maximum speed: 8 mph / 12 km/h
Acceleration system: Right-hand scooter throttle
Seat adjustment: Yes
Suspension: Full
Compliant with DVLA requirements: Yes
Scooter class: Class-3
Vehicle autonomy: Level 0
Optimal air humidity for storage and use: 30%
Working temperature of electronic parts: -10 °C to +40 °C
Turning radius: 224 cm / 88.2”

MOTOR
Power: 1000 W
Voltage: 60 V

BATTERY
Type: Lead-Acid Gel
Capacity: 20 Ah
Voltage: 60 V
Life cycle: 600 full charges
Charge time: ≈8 h

BRAKES
Front: Drum
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 3
Type of tyres: Pneumatic tubeless
Size: 3.00-10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam headlight: HS1
High beam headlight: HS1
Position lights: LED (integrated with lamp)
Front and rear signal lights: LED (integrated with lamp)
Brake light: LED (integrated with lamp)
Hazard lights: LED (integrated with lamp)
Registration plate light: LED (integrated with lamp)

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Analogue display
• USB port

ADDITIONAL INFORMATION
Color: White
Wheels: 3 Wheels
Model: Cristal
Brand: Veleco
Battery: Lead-Acid
Scooter type: Electric Scooter
Scooter class: 3rd Class Mobility Scooter

TECHNICAL SPECIFICATIONS

• Max user weight: 160 kg
• Scooter weight: 120 kg
• Hill climbing ability: 17°
• Maximum range (single charge): 40-60 km
• Maximum speed: 8 mph / 12 km/h
• Acceleration system: Right-hand scooter throttle
• Seat adjustment: Yes
• Suspension: Full
• DVLA compliance: Yes
• Scooter class: Class-3 (3rd Class Mobility Scooter)
• Vehicle autonomy level: 0
• Optimal storage/use humidity: 30%
• Working temperature (electronics): -10 °C to +40 °C
• Turning radius: 224 cm / 88.2”
• Motor power: 1000 W
• Motor voltage: 60 V
• Battery type: Lead-Acid Gel
• Battery capacity: 20 Ah
• Battery voltage: 60 V
• Battery life cycle: 600 full charges
• Battery charge time: approx. 8 hours
• Brakes: Front drum, Rear drum, Magnetic brake: No
• Wheels: 3; Tyres pneumatic tubeless; Size 3.00-10”
• Recommended tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: HS1 low/high beam; multiple integrated LED lights for position, indicators, brake, hazard and registration plate
• Features: horn, mirrors, steering wheel lock, parking brake, analogue display, USB port
