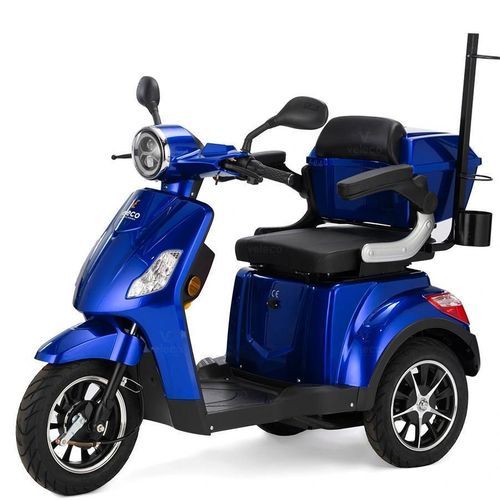

Electric mobility scooter DRA-LI-BLU

3-wheel

OVERVIEW
Class-3 mobility scooter designed for outdoor use. Maximum user weight 160 kg. Turning radius 165 cm. Full suspension and adjustable seat for improved comfort. DVLA-compliant for road use where applicable.

MOTOR
Power: 800 W
Voltage: 48 V

BATTERY
Type: Lead-Acid Gel (upgradeable to Lithium-Ion)
Capacity: 20 Ah
Voltage: 48 V
Life cycle: ≈600 full charge cycles
Charge time: ≈8 h
Single-charge range: 45–50 km (varies by battery and conditions)

BRAKES

• Front: Drum
• Rear: Drum
• Magnetic brake: Yes

WHEELS
3 pneumatic tubeless tyres, size 3.00-10”. Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI. Turning radius: 165 cm.

LIGHTS
LED low and high beam, LED position and tail lights. Front/rear indicators P21/5 W LED / R10W 12V. Brake and hazard lights P21/5 W LED.

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Stick holder
• Alarm
• Remote control

ADDITIONAL INFORMATION
Color: Blue
Wheels: 3 Wheels
Model: Draco
Battery: Lit-Ion (upgrade option)
Brand: Veleco
Scooter type: Electric scooter
Scooter class: Class-3 mobility scooter

TECHNICAL SPECIFICATIONS

• Max user weight: 160 kg
• Scooter weight: 103 kg (Lead-Acid Gel) / 88 kg (Lithium-Ion)
• Hill climbing ability: 17°
• Maximum range (single charge): 45–50 km
• Maximum speed: 12 km/h (8 mph)
• Motor power: 800 W, 48 V
• Battery: Lead‑Acid Gel (upgradeable to Lithium‑Ion), 20 Ah, 48 V, ~600 cycles, charge time ≈8 h
• Brakes: Front and rear drum, magnetic brake
• Wheels: 3, pneumatic tubeless 3.00-10”
• Turning radius: 165 cm
• Operating temperature (electronics): -10 °C to +40 °C
