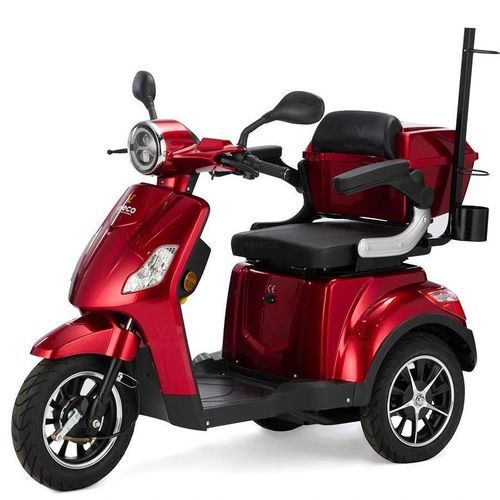

Electric mobility scooter DRA-LI-RED

3-wheel

OVERVIEW
Max user weight: 160 kg
Scooter weight: 103 kg (Lead‑Acid Gel) / 88 kg (Lithium‑Ion)
Hill climbing ability: 17°
Maximum range (single charge): 45–50 km
Maximum speed: 12 km/h (8 mph)
Acceleration system: push‑button
Seat adjustment: yes
Suspension: full
Compliant with DVLA requirements: Yes
Scooter class: Class‑3
Vehicle autonomy: Level 0
Optimal storage/use humidity: 30%
Operating temperature (electronics): -10 °C to +40 °C
Turning radius: 165 cm


MOTOR
Power: 800 W
Voltage: 48 V


BATTERY
Type: Lead‑Acid Gel (upgradeable to Lithium‑Ion)
Capacity: 20 Ah
Voltage: 48 V
Life cycle: ≈600 full charges
Charge time: ≈8 h


BRAKES
Front: Drum
Rear: Drum
Magnetic brake: Yes


WHEELS
Amount: 3
Tyres: pneumatic tubeless
Size: 3.00‑10"
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI


LIGHTS
Low beam headlight: LED (integrated)
High beam headlight: LED (integrated)
Position lights: LED (integrated)
Tail lights: LED (integrated)
Front and rear signal lights: P21/5 W LED / R10W 12V
Brake light: P21/5 W LED
Hazard lights: P21/5 W LED / R10W 12V


FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Stick holder
• Alarm
• Remote control

ADDITIONAL INFORMATION
Color: Red
Wheels: 3
Model: Draco
Battery: Lithium‑Ion (upgrade option from Lead‑Acid Gel)
Brand: Veleco
Scooter type: Electric mobility scooter
Scooter class: Class‑3


TECHNICAL SPECIFICATIONS

• Product name: Mobility Scooter Veleco Draco Lithium‑Ion Red
• Brand: Veleco
• Model: Draco
• SKU: DRA‑LI‑RED
• Max user weight: 160 kg
• Scooter weight: 103 kg (Lead‑Acid Gel) / 88 kg (Lithium‑Ion)
• Hill climbing ability: 17°
• Maximum range (single charge): 45–50 km
• Maximum speed: 12 km/h (8 mph)
• Motor: 800 W, 48 V
• Battery: Lead‑Acid Gel (upgradeable to Lithium‑Ion), 20 Ah, 48 V, ~600 cycles, charge time ≈8 h
• Brakes: Front drum, Rear drum, Magnetic brake
• Wheels: 3, pneumatic tubeless, size 3.00‑10"
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: LED headlights, position lights, tail lights, LED indicators
• Turning radius: 165 cm
• Operating temperature (electronics): -10 °C to +40 °C
• Optimal storage/use humidity: 30%
• Vehicle autonomy: Level 0
