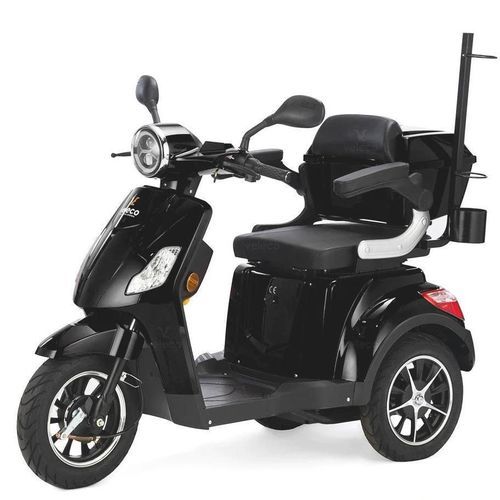

Electric mobility scooter DRA-LI-BLA

3-wheel

Overview
Max user weight: 160 kg / 25.2 st
Scooter weight: 103 kg (Lead‑Acid Gel) / 88 kg (Lithium‑Ion)
Hill climbing ability: 17°
Maximum range (single charge): 45–50 km / 28–31.1 mi
Maximum speed: 12 km/h (8 mph)
Turning radius: 165 cm / 65"
Seat adjustment: Yes
Suspension: Full
Class: Class‑3 mobility scooter

Motor
Power: 800 W
Voltage: 48 V

Battery
Type: Lead‑Acid Gel (upgradeable to Lithium‑Ion)
Capacity: 20 Ah
Voltage: 48 V
Life cycle: ≈600 full charges
Charge time: ≈8 h

Brakes & Wheels
Front brake: Drum
Rear brake: Drum
Magnetic brake: Yes
Wheels: 3
Tyres: Pneumatic tubeless 3.00‑10"
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

Lighting
Low/high beam: Integrated LED
Position and tail lights: LED (integrated)
Indicators / hazard: P21/5 W LED / R10W 12V
Brake light: P21/5 W LED

Features

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Stick holder
• Alarm
• Remote control

Compliance & use
DVLA compliant where applicable
Vehicle autonomy: Level 0
Optimal storage/use humidity: 30%
Operating temperature (electronic parts): -10 °C to +40 °C

Technical specifications

• Max user weight: 160 kg / 25.2 st
• Scooter weight: 103 kg (Lead‑Acid Gel) or 88 kg (Lithium‑Ion)
• Hill climbing ability: 17°
• Range: 45–50 km (single charge)
• Maximum speed: 12 km/h (8 mph)
• Acceleration: Push‑button
• Seat: Adjustable
• Suspension: Full
• Motor: 800 W, 48 V
• Battery: 48 V, 20 Ah (Lead‑Acid Gel; upgradeable to Lithium‑Ion)
• Battery life cycle: ≈600 full charges; Charge time ≈8 h
• Brakes: Front drum, Rear drum, Magnetic brake
• Wheels: 3; Tyres pneumatic tubeless 3.00‑10"
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Lighting: Integrated LED low/high beam, position and tail lights; Indicators/hazard: P21/5 W LED / R10W 12V
• Included: Horn, rearview mirrors, steering wheel lock, parking brake, LED display, USB port, stick holder, alarm, remote control
