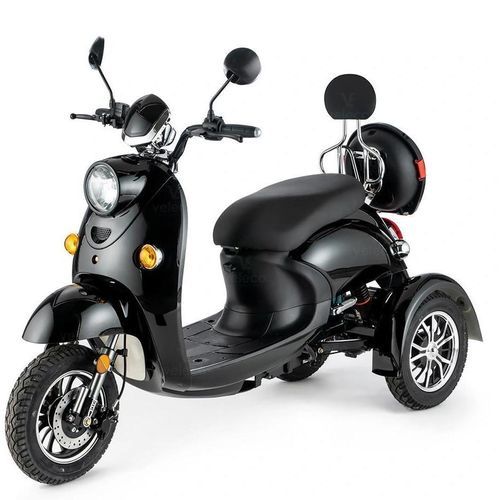

Electric mobility scooter 63-BLA

3-wheel

SPECIFICATIONS
Overview
Max user weight: 199 kg / 31.3 st
Scooter weight: 94 kg / 14.8 st
Hill climbing ability: 17°
Maximum range on single charge: 40-60 km / 24.9-37.3 mi
Maximum speed: 8 mph / 12 km/h
Turning radius: 195 cm / 76.8”
Compliant with DVLA requirements: Yes
Scooter class: Class-3 (on-road capable)
Optimal storage humidity: 30%
Working temperature (electronics): -10 °C to +40 °C

MOTOR
Power: 650 W
Voltage: 60 V

BATTERY
Type: Lead‑Acid Gel
Capacity: 20 Ah
Voltage: 60 V
Life cycle: 600 full charges
Charge time: ≈8 h

BRAKES
Front: Hydraulic disc
Rear: Drum
Magnetic brake: No

WHEELS
Amount: 3
Tyres: Pneumatic tubeless
Size: 3.00-10”
Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI

LIGHTS
Low beam headlight: S2
High beam headlight: S2
Position lights: W5W
Tail lights: P21/5 W
Daytime running lights: S2
Signal lights: R10W 12V
Brake light: P21/5 W
Hazard lights: R10W 12V

FEATURES
Horn
Rearview mirrors
Steering wheel lock
Parking brake
Electric LED display
Alarm
Remote control

Additional information
Color: Black
Wheels: 3 Wheels
Model: ZT63 Retro
Battery: Lead‑Acid Gel
Brand: Veleco
Scooter type: Electric mobility scooter
Scooter class: 3rd Class Mobility Scooter

Technical specifications

• Brand: Veleco
• Model: ZT63 Retro
• Color: Black
• Max user weight: 199 kg (31.3 st)
• Scooter weight: 94 kg (14.8 st)
• Maximum speed: 8 mph (12 km/h)
• Range per charge: 40-60 km (24.9-37.3 mi)
• Motor power: 650 W, Voltage: 60 V
• Battery type: Lead‑Acid Gel, Capacity: 20 Ah, Voltage: 60 V, Life cycle: 600 full charges, Charge time: ≈8 h
• Brakes: Front hydraulic disc, Rear drum
• Wheels: 3, Tyres: Pneumatic tubeless 3.00-10”, Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Suspension: Full
• Turning radius: 195 cm (76.8”)
• Working temperature (electronics): -10 °C to +40 °C
• DVLA compliant: Yes
