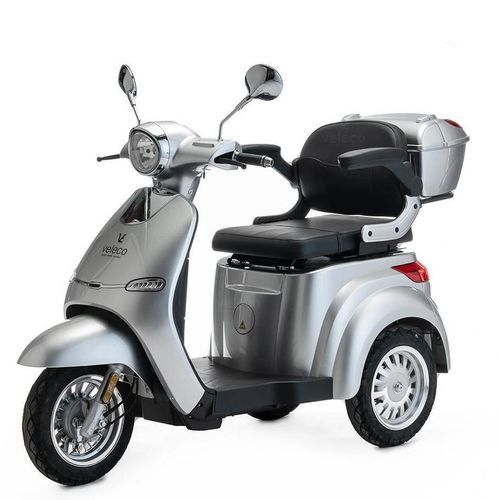

Electric mobility scooter CRI-SIL

3-wheelwith basket

OVERVIEW
Designed for on-road and urban outdoor use, the Veleco Cristal is a Class-3, three-wheel mobility scooter with a maximum user weight of 160 kg. It offers a top speed of 12 km/h and a practical single-charge range of 40–60 km, suitable for extended trips and daily commuting. Ergonomic adjustments and full suspension improve comfort over mixed surfaces. Complies with DVLA requirements for Class 3 scooters.

MOTOR & BATTERY
Equipped with a 1000 W motor (60 V) and a 60 V, 20 Ah lead-acid gel battery. Battery life: approximately 600 full charge cycles. Typical charge time ≈8 hours. Electronics rated for operation between -10 °C and +40 °C.

BRAKES & WHEELS
Front and rear drum brakes provide reliable stopping power. The scooter has three pneumatic tubeless tyres (size 3.00-10) with recommended pressure 2.25 bar (32.5 PSI). Turning radius: 224 cm.

LIGHTING & CONTROLS
Integrated LED lighting (position, indicators, brake, hazard, registration lamp) with HS1 low/high beam. Controls include a right-hand throttle, analogue display, USB port, steering wheel lock, horn, rearview mirrors and parking brake.

TECHNICAL SPECIFICATIONS

• Max user weight: 160 kg
• Scooter weight: 120 kg
• Hill climbing ability: 17°
• Range (single charge): 40–60 km
• Maximum speed: 12 km/h
• Response speed: Low
• Seat adjustment: Yes
• Suspension: Full
• DVLA compliance: Yes (Class 3)
• Vehicle autonomy: Level 0
• Optimal storage humidity: 30%
• Electronics operating temperature: -10 °C to +40 °C
• Turning radius: 224 cm
• Motor: 1000 W, 60 V
• Battery: Lead-Acid Gel, 20 Ah, 60 V, ≈600 cycles, charge time ≈8 h
• Front brakes: Drum
• Rear brakes: Drum
• Magnetic brake: No
• Wheels: 3; tyres pneumatic tubeless 3.00-10
• Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI
• Headlights: HS1 (low/high)
• Position/indicator/brake/hazard/registration lights: LED (integrated)
• Included features: Horn, Rearview mirrors, Steering wheel lock, Parking brake, Analogue display, USB port

ADDITIONAL INFORMATION
Brand: Veleco
Model: Cristal
Color: Silver
Wheel configuration: 3 wheels
Scooter class: Class 3
