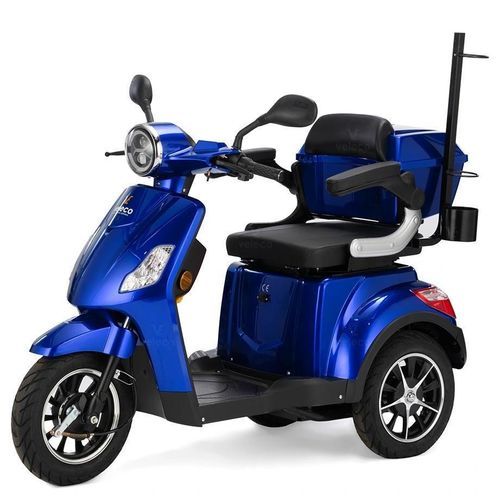

Electric mobility scooter DRA-BLU

3-wheel

OVERVIEW
Suitable for indoor and outdoor mobility assistance. Max user weight: 160 kg (25.2 st). Scooter weight: 103 kg with Lead‑Acid Gel battery, 88 kg with Lithium‑Ion battery. Class: Class-3. Compliant with DVLA requirements. Maximum speed: 12 km/h (8 mph). Maximum range per charge: 45–50 km (28–31.1 mi). Hill climbing ability: 17°. Turning radius: 165 cm (65”). Seat: adjustable. Suspension: full. Vehicle autonomy: Level 0. Optimal storage humidity: 30%. Operating temperature (electronics): -10 °C to +40 °C.

MOTOR
Power: 800 W. Voltage: 48 V.

BATTERY
Type: Lead‑Acid Gel (upgradeable to Lithium‑Ion). Capacity: 20 Ah. Voltage: 48 V. Life cycle: 600 full charges. Charge time: ≈8 h. Option to upgrade to Lithium‑Ion for reduced weight and faster charging.

BRAKES & WHEELS
Front brake: Drum. Rear brake: Drum. Magnetic brake: Yes. Wheels: 3 pneumatic tubeless tyres, size 3.00‑10”. Tyre pressure: 2.25 bar / 225 kPa / 32.5 PSI.

LIGHTS & SIGNALS
Integrated LED low and high beam, position lights, tail lights. Front and rear indicators: P21/5 W LED or R10W 12V. Brake and hazard lights: P21/5 W LED.

FEATURES

• Horn
• Rearview mirrors
• Steering wheel lock
• Parking brake
• Electric LED display
• USB port
• Stick holder
• Alarm
• Remote control

ADDITIONAL INFORMATION / TECHNICAL SPECIFICATIONS

• Color: Blue
• Wheels: 3
• Model: Draco
• Brand: Veleco
• Battery: Lead‑Acid (upgradeable to Lithium‑Ion)
• Motor: 800 W, 48 V
• Battery capacity: 20 Ah
• Max user weight: 160 kg
• Scooter weight: 103 kg (Lead‑Acid Gel) / 88 kg (Lithium‑Ion)
• Max range: 45–50 km
• Max speed: 12 km/h
• Hill climb: 17°
• Turning radius: 165 cm
• Operating temperature (electronics): -10 °C to +40 °C
